Schema SQL

The Schema SQL tab shows the diagram's DDL for the selected database: the SQL that creates its tables with their keys, indexes, and foreign keys.
Switch to the Schema SQL tab in the toolbar, or choose Schema SQL under Tab in Quick Search. Choosing Schema SQL from the Export submenu opens it as well, ready to save — see Saving or Copying the SQL.

The SQL sits on the left, and on its right an options panel headed Schema SQL holds the choices that shape it — see Options Panel. In a right-to-left display language too, the SQL stays on the left and reads left to right.
The panel opens on its own unless the editor is narrower than 640 px when the tab first opens. Hide options in the panel's header folds it away, and Show options at the top right of the code brings it back. It then stays open or folded as you left it, across tab switches, for as long as the editor is open. It folds and opens independently of the Code Generator tab's panel, and is never saved in the file.

Right-click the SQL to open its context menu:

• Database and Bracket, each a submenu that checks the current value.
• Statements and Header, each a submenu that checks the choice in effect. A choice the database does not have carries a muted note such as not in Oracle and does nothing.
• Options panel, checked while the panel shows, which folds or opens it.
• Save file…

While this tab is open, Quick Search offers Database and Bracket; Schema SQL: Statements and Schema SQL: Header, which list only the choices the database has; Schema SQL: Options panel, which folds or opens the panel; and Export: Schema SQL.

The SQL is written when the tab opens, and again whenever one of the panel's choices, the database name, or a script changes. An edit made to the tables while the tab is open, such as a collaborator's or a coding agent's, shows once you leave the tab and come back, or once one of those changes.

Table Properties has a Schema SQL tab of its own, which shows one table's DDL. It always writes plain CREATE statements with no header or scripts, has no options panel, and its context menu offers only Database and Bracket.

Options Panel

The panel holds three groups, each under a caption:

1. Saved in the document: Database and Bracket — see Database and Bracket.
2. This window only: Statements, Header, and, while the diagram has a table group, Tables — see Statements, Header, and Tables.
3. Saved in the document · written as is for every database: the Before tables and After tables scripts — see Before and After Scripts.

Save file and Copy sit at its foot — see Saving or Copying the SQL.

The choices under This window only belong to the editor window you make them in. They are not saved in the document, shared with collaborators, or recorded for undo, and they reset when the editor is closed or reloaded; switching tabs keeps them.
Statements starts at If not exists and Header at CREATE + USE. The SQL a page embedding the editor reads with getSchemaSQL(), and the SQL a coding agent reads, start at Create with no header instead.

A choice the selected database does not have stays in the panel, dimmed, with the tooltip Not in <database>, such as Not in Oracle, and pressing it does nothing.
The SQL then uses the nearest form the database has, and that form's button shows pressed: If not exists falls back to Create, CREATE + USE to USE, or to None where the database has no USE either, and USE to None. Your choice is kept, so switching to a database that has it brings it back.

Database and Bracket

Database is the diagram's database, the same setting as the canvas context menu's Database and the Code Generator's — see Databases. It lists Databricks, MSSQL, MariaDB, MySQL, Oracle, PostgreSQL, Snowflake, and SQLite, starts at MySQL, and is saved in the file like any edit.

Bracket sets the quote wrapped around table, column, constraint, and index names: SingleQuote, DoubleQuote, Backtick, or None for no quoting at all, which is the default. It is the same setting as the Code Generator's — see Bracket.
Snowflake, which quotes names only with double quotes, uses them under any choice but None, and Databricks always quotes names with backticks.
Bracket is saved in the file only while the Bracket Type lock on the Settings tab is off, and a new diagram has every lock on. While the lock is on, a change rewrites the SQL on your screen, but the file keeps the locked value and the diagram reopens with it — see Lock.

While the database is Oracle and the SQL holds a name longer than 30 bytes, which Oracle 12.1 and older refuse, a note under the two lists names each one: Oracle 12.2+ for names over 30 bytes: <names>. It checks table, column, schema, key, index, sequence, and trigger names. The SQL itself does not change.

Statements

Statements decides how the tables are created:

• Create writes plain CREATE statements.
• If not exists skips the tables and indexes that already exist. MySQL, MariaDB, PostgreSQL, SQLite, and Databricks have it; MSSQL, Oracle, and Snowflake write Create instead.
  • MySQL writes each table as CREATE TABLE IF NOT EXISTS with its unique constraints, indexes, and foreign keys inside it, and puts the whole batch between SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0; and SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS;.
  • MariaDB puts IF NOT EXISTS on each statement: the CREATE TABLE, each UNIQUE and FOREIGN KEY constraint, and each CREATE INDEX.
  • PostgreSQL writes CREATE TABLE IF NOT EXISTS and CREATE INDEX IF NOT EXISTS, and drops each foreign key with DROP CONSTRAINT IF EXISTS before adding it again.
  • SQLite writes CREATE TABLE IF NOT EXISTS and CREATE INDEX IF NOT EXISTS.
  • Databricks writes CREATE TABLE IF NOT EXISTS, and drops each foreign key with DROP CONSTRAINT IF EXISTS before adding it again.
• Drop & re-create drops every table it writes before creating them again, except on Snowflake. Every database has it:
  • MySQL and MariaDB write a DROP TABLE IF EXISTS for each table, between the same two lines that turn the foreign key checks off and back on.
  • PostgreSQL writes one DROP TABLE IF EXISTS naming every table, which fails if a table outside the list references one of them. Under a CREATE + USE header, a table whose name gives no schema is dropped from that schema, such as shop.member.
  • MSSQL writes one transaction, which needs SQL Server 2016 or later, as the button's tooltip SQL Server 2016+ says. It drops the foreign keys the written tables hold, then the tables with one DROP TABLE IF EXISTS, and rolls back on an error. A foreign key held by a table outside the list still blocks the drop.
  • SQLite writes PRAGMA foreign_keys=OFF;, which stays off for that connection, then a DROP TABLE IF EXISTS for each table.
  • Oracle writes DROP TABLE … CASCADE CONSTRAINTS for each table and DROP SEQUENCE for each auto-increment sequence, each in a PL/SQL block that ends with a / line and passes over the error a missing table or sequence raises.
  • Databricks writes a DROP TABLE IF EXISTS for each table.
  • Snowflake drops nothing and writes CREATE OR REPLACE TABLE instead.

While Drop & re-create is in effect, a warning in the panel names the tables it drops: Drops <tables> before creating them. Their rows are lost., or on Snowflake Replaces <tables>. Their rows are lost.
Up to five tables are named in full. Past five, the warning names the first four and counts the rest, such as a, b, c, d, and 3 more tables.

Header

Header opens the SQL with the statements that create or select the database, or the schema, it runs in. The name is the diagram's database name, typed in the database name field of the toolbar, and is quoted with the Bracket character.

• MySQL and MariaDB: USE writes USE shop;, and CREATE + USE writes CREATE DATABASE IF NOT EXISTS shop; before it.
• MSSQL: USE writes USE shop and GO, and CREATE + USE writes IF DB_ID(N'shop') IS NULL CREATE DATABASE shop and GO before it.
• PostgreSQL has only CREATE + USE, which writes CREATE SCHEMA IF NOT EXISTS shop; and SET search_path TO shop, public;.
• Oracle has only USE, which writes ALTER SESSION SET CURRENT_SCHEMA = shop;. CREATE + USE falls back to it, so this is the line Oracle writes under the tab's default header.
• Snowflake and Databricks: USE writes USE SCHEMA shop;, and CREATE + USE writes CREATE SCHEMA IF NOT EXISTS shop; before it.
• SQLite has neither, and writes no header.

Where the database has USE or CREATE + USE, the button's tooltip names what it writes there, such as CREATE SCHEMA + SET search_path on PostgreSQL.

A header is written only while the database name is a plain identifier: an ASCII letter (A–Z, a–z) or _, followed by ASCII letters, digits, or _.
Any other name, a blank one included, writes no header, and PostgreSQL's DROP TABLE then names no schema. While a header other than None is in effect, a note under Header says so: Database name "<name>" is not a valid identifier.
A new diagram's database name is blank, so until you name it the panel shows Database name "" is not a valid identifier.

Tables

While the diagram has at least one table group, shown or hidden, Tables appears under This window only with a checkbox for each choice:

• All, which checks or unchecks every box. It shows a mixed state while only some are checked.
• One box per table group, in the diagram's group order, labeled with the group's name, or unnamed for a group without one, after a dot in the group's color when it has a color.
• No group, for the tables in no group.

With every box checked, the tab writes the whole diagram.
With only some checked, it writes the tables of the checked boxes with their indexes and the foreign keys they hold, including one that references a table left out. The before and after scripts are still written, and Drop & re-create, its warning, and the Oracle note on long names cover only those tables.
With no box checked, the tab writes nothing, and a hint over the code reads No tables chosen. Check some under Tables. Save file then saves an empty file, and Copy copies empty text.

Like Statements and Header, the choice belongs to the window — see Options Panel.
A group added later starts checked only if every box was checked at that moment. Removing a group drops its box, and removing the last group checks everything again.
The choice applies to this tab alone. The Schema SQL tab of Table Properties and getSchemaSQL() are not affected by it.

Before and After Scripts

Before tables and After tables hold SQL of your own, such as CREATE EXTENSION or SET statements before the tables, or grants, views, and seed data after them.
They are saved in the document, one pair for the whole diagram whatever the database. Each is written into the SQL as you typed it, never checked: the before script after the header and before the DROP statements and the tables, the after script at the very end.

Line breaks are written as LF, and the blank lines before a script and the whitespace after it are dropped.
On MSSQL, a GO line is added after a script whose last line is not GO (or GO with a count), as the line under the two fields says. On Oracle, end a PL/SQL block with its / line yourself.

The fields highlight SQL and grow with their text.
An edit is applied when you leave the field, by clicking elsewhere or switching tabs, and only then do the SQL beside it and the document change. A field you only clicked into changes nothing.
A script edit changes the diagram like any other edit: it is saved in the file, collaborators see it, and each applied edit is one step in the undo history, which you undo from the ERD tab.
While you type in a field, the editor's own shortcuts are left to it, so Ctrl + Z (Windows/Linux) or ⌘ + Z (Mac) undoes your typing there, and copy, cut, and paste act on the text rather than on the diagram. Quick Search and Find and Replace still open from their shortcuts.
A field without the keyboard focus follows a change a collaborator or a coding agent makes to its script. A field you are in shows that change when you leave it without having typed. If you typed, your text is applied when you leave and replaces theirs.

Saving or Copying the SQL

Save file at the foot of the panel, or Save file… in the context menu, saves exactly the SQL the tab shows, with its current database, bracket, statements, header, tables, and scripts, as <database name>-<timestamp>.sql. It is named and saved like every other export — see Exporting.

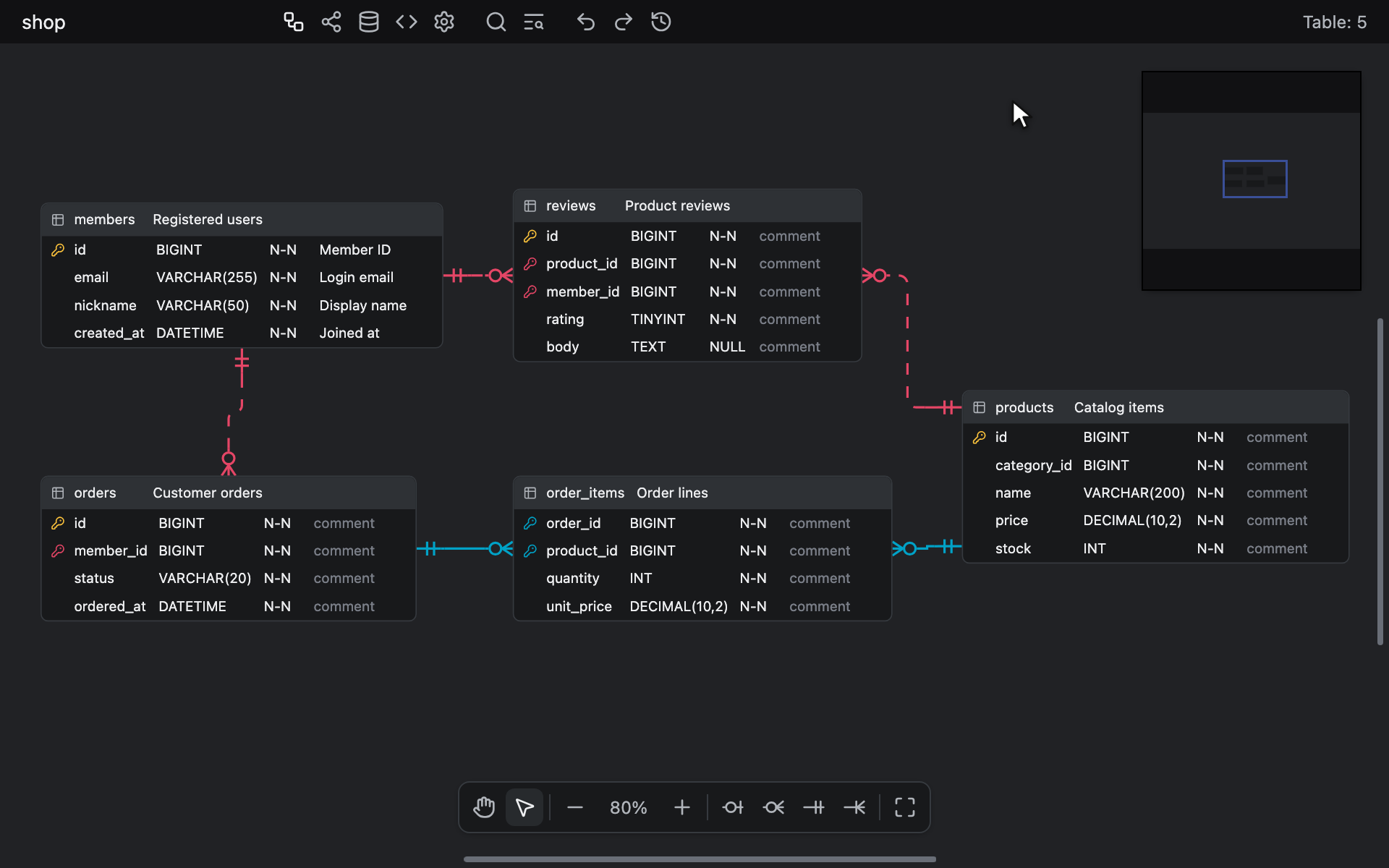

Export ▸ Schema SQL, in the canvas context menu or in Quick Search, saves nothing by itself, and neither does the Quick Search command Export: Schema SQL, which is listed on every tab.
Each switches to this tab, opens the options panel even if it was folded, and puts the keyboard focus on Save file, so pressing Enter saves the file.

Copy at the foot of the panel, or the copy button that appears at the top right of the code while you hover it, copies the SQL.
A Copied! toast with a check mark confirms for two seconds. If the browser or host refuses the clipboard, a Couldn't copy to the clipboard toast with a warning sign says so instead. Copying again replaces the toast rather than adding another.
The SQL is selectable as well, so you can take only part of it.

What the DDL Writes

These rules hold wherever the editor writes Schema SQL: on this tab and in its file, and in the SQL a page embedding the editor or a coding agent reads.
The Schema SQL tab of Table Properties follows them for the one table it shows. It writes no foreign keys, except SQLite's, which sit inside its CREATE TABLE, and no Oracle sequence or trigger.

The parts come in this order, one blank line apart: the header, the before script, the DROP statements, the tables, and the after script. Tables are written in name order.
A diagram with no tables and no scripts writes nothing, even with a header chosen.

Auto Increment

A column marked Auto Increment is written as each database writes it: AUTO_INCREMENT on MySQL and MariaDB, IDENTITY(1,1) on MSSQL, AUTOINCREMENT on Snowflake, and GENERATED ALWAYS AS IDENTITY on PostgreSQL and Databricks.
Oracle gets a sequence SEQ_<table> and a trigger SEQ_TRG_<table> that fills the column from it. The trigger ends with a / line, so SQL*Plus and SQLcl run it.

Where a database does not take auto increment on the column's type, the clause is left out, and a comment line after the table names the column:

• PostgreSQL takes it only on smallint, integer, or bigint, under any of their names: INT, INTEGER, BIGINT, SMALLINT, INT2, INT4, or INT8. A column of another type gets neither the clause nor a default, and the comment reads, for example, -- PostgreSQL takes IDENTITY only on smallint, integer or bigint, so member.id is written without it.
• Databricks takes it only on BIGINT or LONG.
• SQLite takes AUTOINCREMENT only on a table's lone primary key column of an integer type, such as INT, BIGINT, or INT8, with or without a width. That column is written as INTEGER, and the key as PRIMARY KEY (id AUTOINCREMENT). A lone key of any other type is written without it.

Referential Actions

Which ON DELETE and ON UPDATE actions each database writes is listed in ON DELETE and ON UPDATE.
Where Snowflake leaves an action out, a comment above that foreign key's ALTER TABLE names it, such as -- Snowflake creates no foreign key with a referential action other than NO ACTION, so ON DELETE CASCADE is left out.

Schema-qualified Table Names

With Bracket at None, a table name with a dot, such as sales.users, is read as a schema and a table, split at its last dot outside brackets or double quotes.

• MySQL, MariaDB, MSSQL, Oracle, and PostgreSQL build the automatic names they write from the table part alone: FK_users_TO_orders and IDX_users on all five, UQ_users_email on all but PostgreSQL, and PK_users on MSSQL and Oracle, the two of them that name the primary key. On those two, [sales].[users] and "sales"."users" give PK_users too, and [Order] gives PK_Order.
• SQLite names no constraints, so the only automatic name it builds is the index's: CREATE INDEX sales.IDX_users ON users.
• Oracle creates the table's indexes, and an auto-increment column's sequence and trigger, in the table's schema: sales.IDX_users, sales.SEQ_users, and sales.SEQ_TRG_users.
• In Oracle and SQLite, an index name you gave a schema yourself keeps it.
• An automatic foreign key or index name that repeats an earlier one, ignoring case, gets a number. With sales.users and hr.Users both referenced from orders, the second key is FK_Users_TO_orders1.

Under any other Bracket, the whole table name is one identifier, such as "PK_sales.users". Snowflake and Databricks always keep the whole name.
The Keys rows of the Indexes tab show the same names.

Defaults

A column's default is written as you typed it, but in parentheses where the database reads that expression only inside them. A default already in parentheses is left as it is.

• MySQL wraps anything but a literal or the current time, such as (uuid()). It also wraps any default but NULL on a BLOB, TEXT, JSON, spatial, or LONG… column, and the current time on any column but a TIMESTAMP or DATETIME.
• MariaDB wraps anything but a literal, the current time, a function call, or a name.
• SQLite wraps anything but a literal or a name, such as (datetime('now')).
• PostgreSQL wraps only an expression with a word such as AT TIME ZONE, AND, OR, IS, IN, LIKE, COLLATE, or = ANY outside parentheses, such as (now() AT TIME ZONE 'utc').
• MSSQL, Oracle, Snowflake, and Databricks write every default as typed.

Read-only Editors

In a readonly editor the tab works as usual: Database and Bracket still change the SQL shown, Statements, Header, and Tables still work, and Save file and Copy still save and copy it.
Only the two script fields are read-only.
