Code Generator

Switch to the Code Generator tab in the toolbar. The tab shows the code for the whole document on the left and, on its right, an options panel headed Code Generator, where you pick the language, the database, the name cases and, for some targets, the bracket.
The panel opens on its own unless the editor is narrower than 640 px when the tab first opens. Hide options at the top of the panel folds it away, and Show options at the top right of the code brings it back. It stays open or folded across tab switches for as long as the editor is open, independently of the Schema SQL tab's panel, and is never saved in the file.

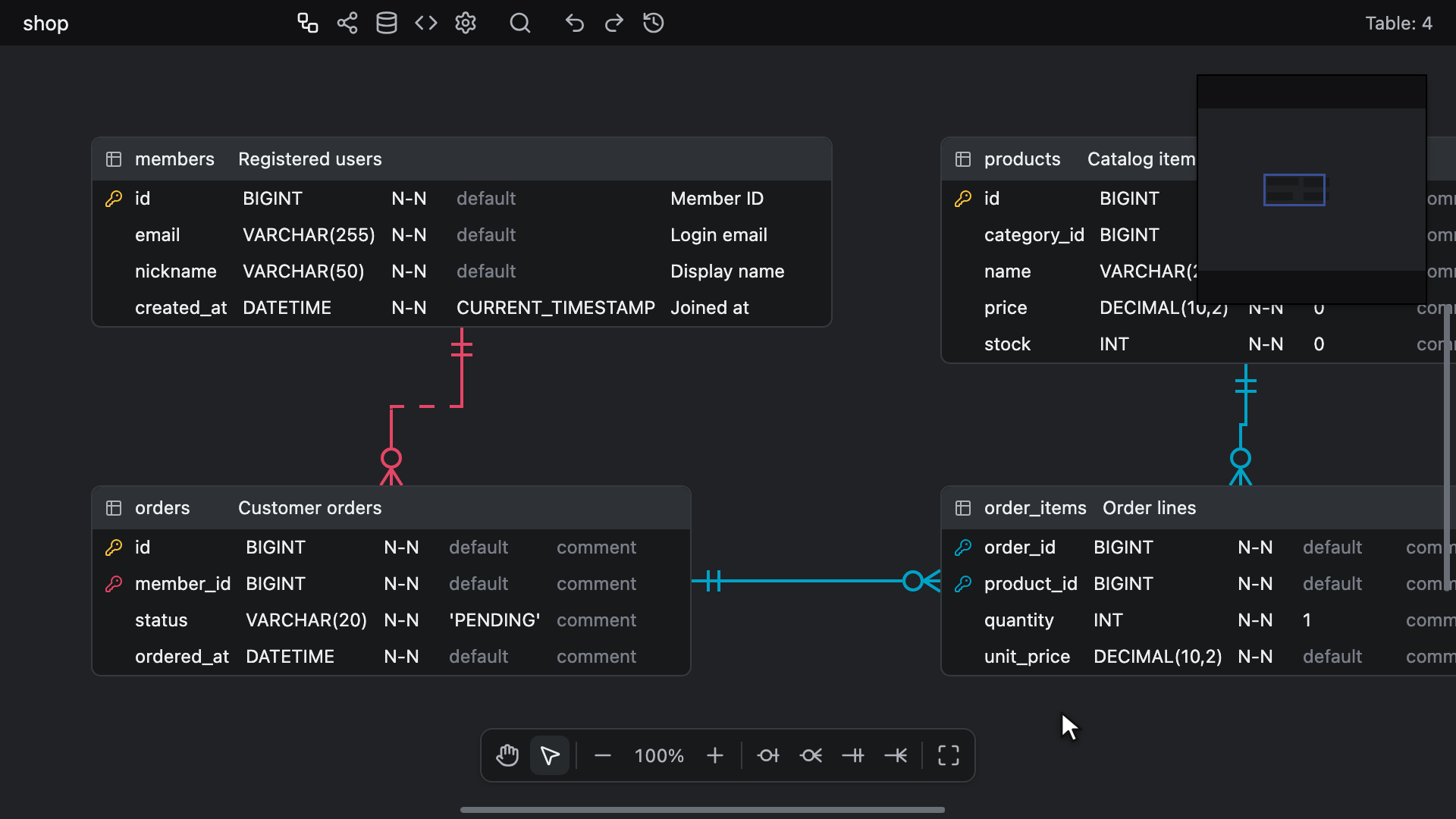

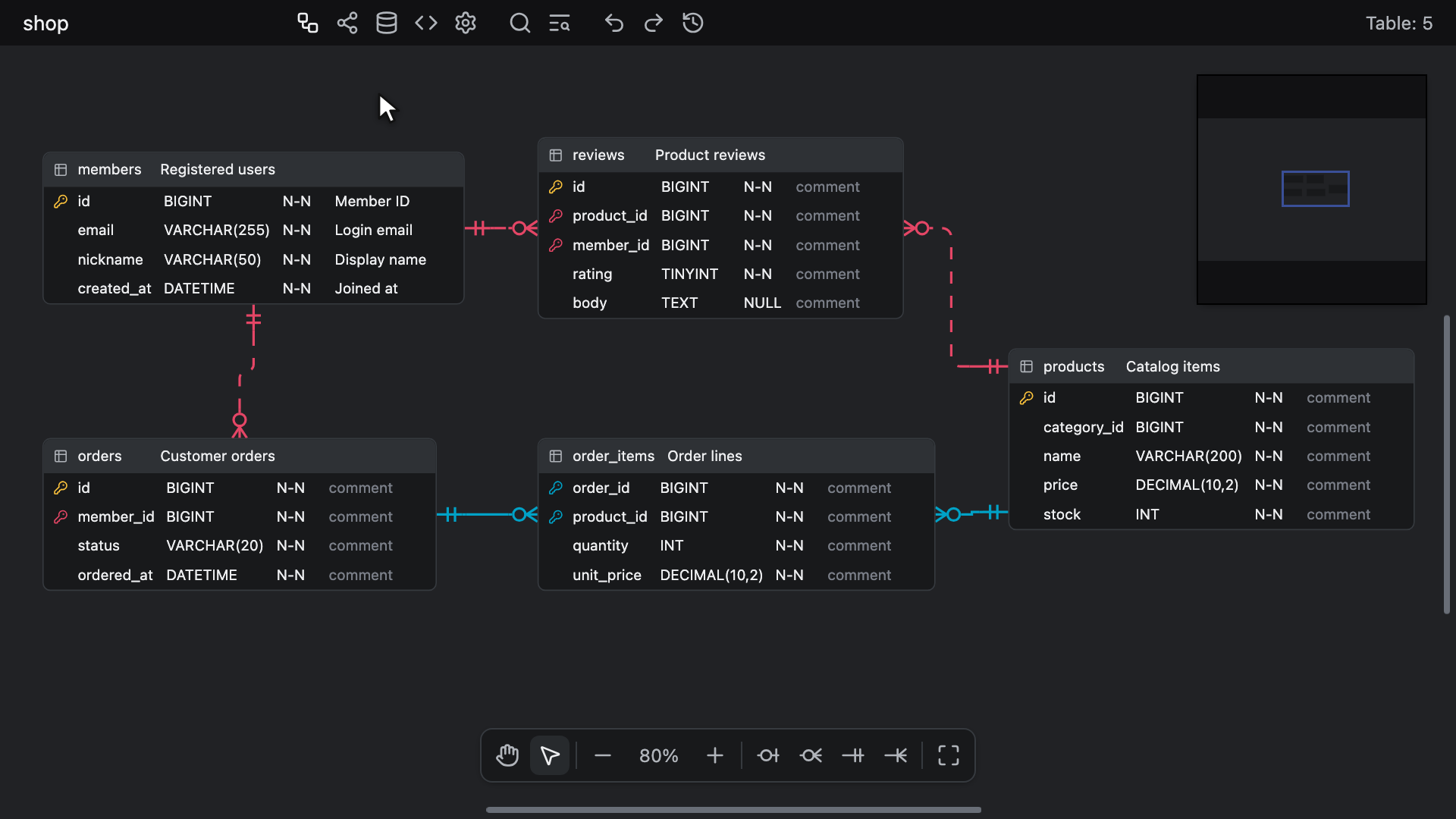

Right-click the code to open its context menu: Language, Database, Table Name Case, Column Name Case, Bracket (only for Doctrine, JPA, and SeaORM), each with a submenu that checks the current value, then Options panel, which folds or opens the panel and is checked while it shows, and Save file….
While this tab is open, Quick Search offers Database, Bracket (only for Doctrine, JPA, and SeaORM), Language, Table Name Case, Column Name Case, and Code Generator: Options panel, which folds or opens the panel.

The same code view is also the Code Generator tab of Table Properties, where it generates code for that one table instead of the whole document. It has no options panel there, and its context menu changes the same settings but has no Options panel or Save file….
Where the code for the whole document opens with imports or a header, the one table's code opens with those that table needs, such as <?php for PHP, import Foundation for Swift, or $schema for JSON Schema.

The code is written when the tab opens and again whenever the language, the database, a name case, or the bracket changes. An edit made to the diagram while the tab is open, such as a collaborator's or a coding agent's, shows once you leave the tab and come back, or once one of those settings changes.

Options Panel

Under the caption Saved in the document, the panel lists Language, Database, Table Name Case, and Column Name Case, followed by Bracket while Doctrine, JPA, or SeaORM is the language. Each is a drop-down list, and a change rewrites the code at once.
When the selected language ignores Database or the name cases, they stay in the panel, dimmed, with a note such as Not used by DBML under them, and can still be changed.
Save file and Copy sit at the foot of the panel — see Saving or Copying the Result.

These are the diagram's own settings, the ones the context menu and Quick Search change too. Database is saved in the file like any edit.
Language, Table Name Case, Column Name Case, and Bracket are saved only while their lock on the Settings tab is off (Bracket Type for Bracket), and a new diagram has every lock on. While a lock is on, a change rewrites the code on your screen, but the file keeps the locked value and the diagram reopens with it. The panel shows no sign of a lock; to keep a choice in the file, turn its lock off — see Lock.

Language

Twenty-two targets are supported, listed in three groups — languages, ORMs, then schemas — each in alphabetical order. The panel's list and the context menu draw a line between the groups but name none of them:

Target	Group	Relationships	Indexes	ON DELETE / ON UPDATE	Saved as
C#	Language	—	—	—	.cs
Go	Language	—	—	—	.go
Java	Language	—	—	—	.java
Kotlin	Language	—	—	—	.kt
PHP	Language	—	—	—	.php
Rust	Language	—	—	—	.rs
Scala	Language	—	—	—	.scala
Swift	Language	—	—	—	.swift
TypeScript	Language	—	—	—	.ts
Doctrine	ORM	✓	✓	ON DELETE only	.php
Drizzle	ORM	✓	✓	✓	.ts
JPA	ORM	✓	—	—	.java
SeaORM	ORM	✓	Unique only	✓	.rs
Sequelize	ORM	✓	✓	✓	.ts
SQLAlchemy	ORM	✓	✓	✓	.py
TypeORM	ORM	✓	✓	✓	.ts
AML	Schema	✓	✓	✓	.aml
DBML	Schema	✓	✓	✓	.dbml
GraphQL	Schema	✓	—	—	.graphql
JSON Schema	Schema	—	—	—	.json
Mermaid	Schema	✓	—	—	.mmd
Zod	Schema	—	—	—	.ts

The default is GraphQL. Every target emits columns; the ✓ marks show what else it emits.
Tables are emitted in name order rather than in the order they sit on the canvas, and indexes are the ones listed under Indexes in Table Properties, not the Keys rows above them. SeaORM writes only the unique ones, and Mermaid marks a unique column UK but writes no index.
Every target but Java, AML, DBML, and Mermaid writes a primary key column as not null whether or not Not Null is set on it. Java marks no column as nullable or not, and AML, DBML, and Mermaid keep the flag as the diagram has it.

What some of the targets write:

• PHP: plain classes of typed public properties, opening with <?php and declare(strict_types=1);.
• Doctrine: Doctrine ORM 3 entities with attributes, for DBAL 4.2 or later, each column with its DBAL type and options for the selected database.
• Rust: a pub struct per table, its types written by full path, such as chrono::NaiveDateTime or rust_decimal::Decimal, with no use line.
• SeaORM: SeaORM 2.0 entities in the dense format, each table a pub mod, so the whole text compiles as one file.
• Swift: a Codable, Hashable, Sendable struct per table, which needs Swift 6.1 or later.
• TypeScript: an export interface per table that describes the row as JSON, as the Zod schema does — a date or a time is a string, and a nullable column is T | null.
• Zod: a Zod 4 row schema per table and the type it infers, with no insert schema and no relations.
• JSON Schema: one JSON Schema draft 2020-12 document, with a row schema per table under $defs.
• Mermaid: an erDiagram, the kind GitHub renders, each table an entity listing every column with its type and any PK, FK, or UK mark, and each relationship a line between its two tables.

AML, DBML, and GraphQL are round-trip formats: each is an import source too. See Importing or Exporting Files. The other schemas, JSON Schema, Mermaid, and Zod, are output only.
DBML writes each table's color as headercolor and, in the code for the whole document, a TableGroup block after the Refs for each table group that holds a table. AML writes a table's color as the nearest of AML's color names.

ON DELETE and ON UPDATE

A relationship's ON DELETE and ON UPDATE actions are set from its context menu — see ON DELETE and ON UPDATE.
The targets with a ✓ in the ON DELETE / ON UPDATE column of the Language table write the actions a relationship sets; an action left at Not set writes nothing.
Which actions the ORM targets keep depends on the selected database, while AML and DBML keep them all — see Database.

• Doctrine writes only ON DELETE, since Doctrine has no ON UPDATE. It adds onDelete: 'CASCADE' to each #[ORM\JoinColumn] of the owning side's ManyToOne or OneToOne, such as #[ORM\JoinColumn(name: 'user_id', referencedColumnName: 'id', nullable: false, onDelete: 'CASCADE')], and nothing on the inverse side's OneToMany or OneToOne. A relationship to a unique column that is not the primary key stays plain columns, which Doctrine maps without an association, so it writes no action.
• Drizzle writes them in lower case. On .references() they are options, such as { onDelete: "cascade", onUpdate: "set null" }; on a foreignKey(), which a multi-column key gets, they are chained, such as .onDelete("restrict").onUpdate("no action").
• SeaORM writes them on the child's belongs_to relation, ON UPDATE first, in SeaORM's names NoAction, Cascade, SetNull, SetDefault, and Restrict, such as on_update = "Cascade", on_delete = "SetNull". The parent's has_one or has_many gets none.
• Sequelize writes onDelete: "CASCADE" and onUpdate entries into both association calls: hasMany or hasOne, and belongsTo. A multi-column key gets no association calls, so Sequelize writes no actions for it.
• SQLAlchemy passes ondelete="CASCADE" and onupdate arguments to ForeignKey() for a one-column key, and to ForeignKeyConstraint() for a multi-column key.
• TypeORM writes onDelete: "CASCADE" and onUpdate options on the owning side's @ManyToOne or @OneToOne, never on the inverse side. It always leaves SET DEFAULT out, because TypeORM would write it as DEFAULT, which no database accepts.
• DBML adds settings to the Ref, such as [delete: set null, update: no action].
• AML writes a relationship that has an action as a standalone rel statement with properties, such as {onDelete: cascade, onUpdate: "set null"}, rather than inline on its column.

JPA writes none: plain JPA has no option for them, and the generator does not use Hibernate's @OnDelete. Mermaid writes none either, since an erDiagram line has no place for them.
In the Code Generator tab of Table Properties, which shows one table, DBML writes no Ref and AML no rel statement, so neither shows the actions there; AML keeps a one-column relation that has actions inline on its column, as it does one without them. Mermaid writes no relationship lines there at all. Doctrine and SeaORM write the same entity there as in the whole document, actions included.

Name Case

Table Name Case and Column Name Case each support Pascal, Camel, Snake, and None.
The defaults are Pascal for table names and Camel for column names. None emits a name as it is written in the diagram.
Under every case, a name the target's language reserves is escaped where that language can escape it, such as @class in C# or r#type in Rust, and renamed where it cannot, such as class_ in Java.

AML, DBML, and Mermaid ignore both settings and always emit the names from the diagram.
SeaORM ignores them too: it names fields and modules in snake case, the form SeaORM reads back, and gives the stored names in table_name and, where they differ, column_name.
For these four targets the panel dims both lists, with the Not used by note under them.

Database

Data types are resolved against the selected database — see Databases.
Pick it on this tab from the panel's Database list, the context menu's Database, or Quick Search, and the code is rewritten at once. It is the diagram's one database setting, the same one the canvas context menu and the Schema SQL tab set, so a change here shows there too.
Drizzle takes its dialect from the same setting: pgTable for PostgreSQL, mysqlTable for MySQL and MariaDB, sqliteTable for SQLite, and pgTable for every other database.
SeaORM writes a column_type where SeaORM would otherwise create a different column type on PostgreSQL, MySQL, MariaDB, or SQLite, and none on MSSQL, Oracle, Snowflake, or Databricks, which SeaORM has no backend for.

The selected database also decides which ON DELETE and ON UPDATE actions the ORM targets write.
Doctrine, SeaORM, Sequelize, SQLAlchemy, and TypeORM leave out any action that database's Schema SQL leaves out, such as SET DEFAULT on MySQL and MariaDB, RESTRICT on MSSQL, or every action but NO ACTION on Snowflake and Databricks, so the database's default applies. The full list is in ON DELETE and ON UPDATE.
Drizzle follows the dialect it writes instead: mysqlTable code leaves out SET DEFAULT, while pgTable and sqliteTable code keep every action, including the pgTable code it writes for MSSQL, Oracle, Snowflake, and Databricks.

AML, DBML, and Mermaid are the exception: they emit each data type as it is written in the diagram, so the database setting does not change their output, and the panel dims Database for them. AML and DBML write every action a relationship sets, and Mermaid writes none.

Bracket

Bracket is offered in the panel, the context menu, and Quick Search only while Doctrine, JPA, or SeaORM is the language.
It is the same setting as the Schema SQL tab's bracket — see Schema SQL — so a change here also changes how Schema SQL quotes names. It offers SingleQuote, DoubleQuote, Backtick, and None, and starts at None.

• Doctrine: under any bracket but None, every table, column, and join column name is wrapped in backticks, which is how Doctrine marks a name to quote, such as #[ORM\Table(name: '`order`')]. Under None only a name that needs it is: a word a database reserves, a name that is not a plain ASCII identifier, or a name typed in quotes.
• JPA: under any bracket but None, a table name that is a reserved word is quoted inside @Table, such as @Table(name = "\"user\""). Under None it is left bare, as Schema SQL leaves it.
• SeaORM: under None, names are written as the database stores them: a dotted table name is split into schema_name and table_name, and on PostgreSQL an unquoted name is folded to lower case. Under any other bracket a name is kept whole, as written.

Saving or Copying the Result

Save file at the foot of the options panel, or Save file… in the context menu, saves the code shown as a file.
It is named like every export, <database name>-<timestamp>, followed by the extension in the Language table, such as shop-2026-10-12T04_05_06.ts, and goes where every export goes in your host — see Exporting. Java and JPA put every class in one .java file, as the tab shows them.
The Export menu has no Code Generator entry, and the Code Generator tab of Table Properties cannot save a file.

To copy the code, click Copy at the foot of the panel, or hover the code and click the copy button at its top right, the only way in Table Properties.
A Copied! toast with a check mark confirms for two seconds. If the browser or host refuses the clipboard, a Couldn't copy to the clipboard toast with a warning sign says so instead. Copying again replaces the toast rather than adding another.
The text is selectable as well, so you can take only the part you need.
