Relationship Editing

Relationships are drawn from the canvas context menu, the canvas toolbar, Quick Search, or with a shortcut — see Editing Start.
This page covers what you can do with one once it exists, how Map Columns ends one on columns the child table already has, and how the foreign key columns it adds are named.

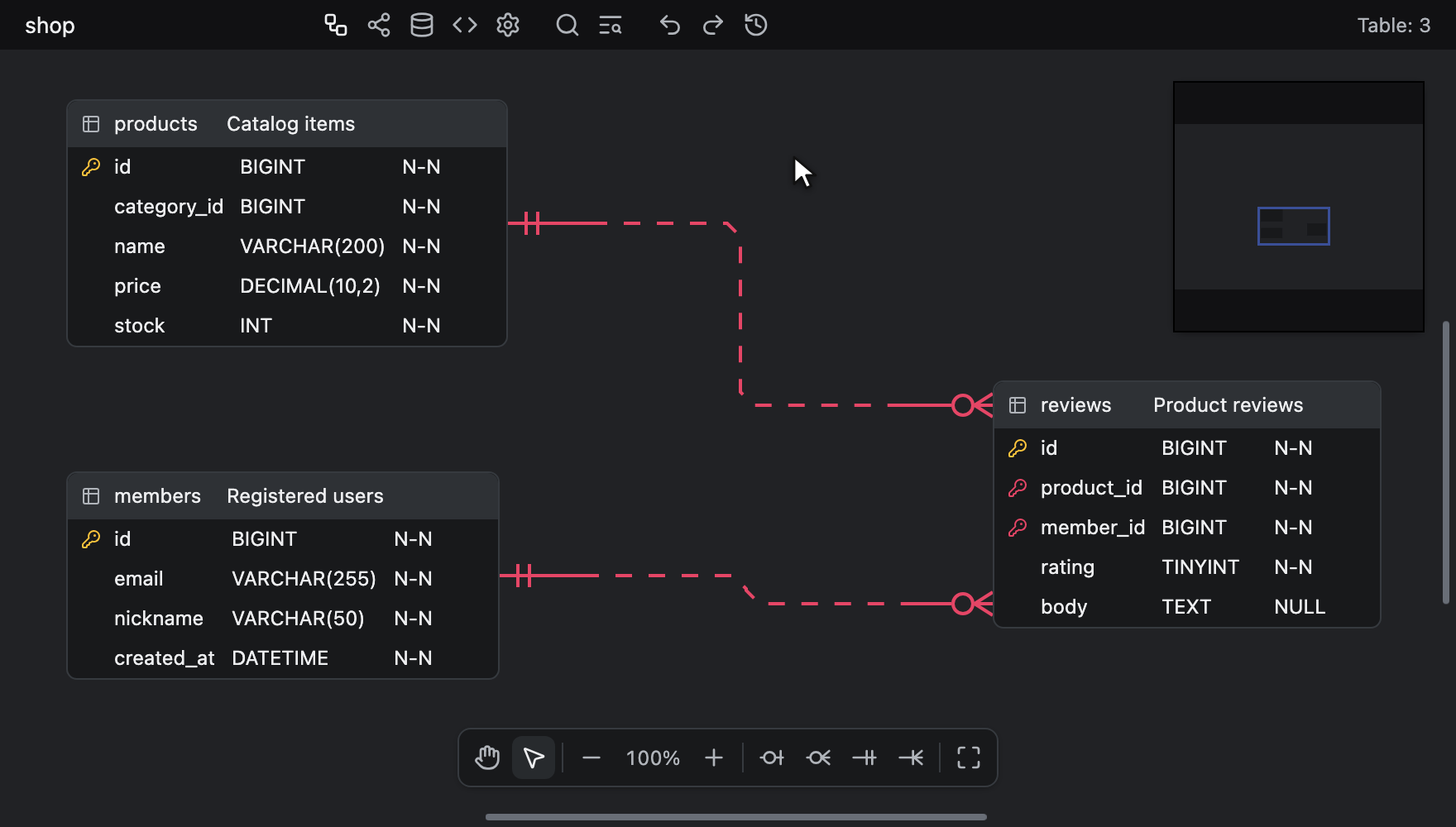

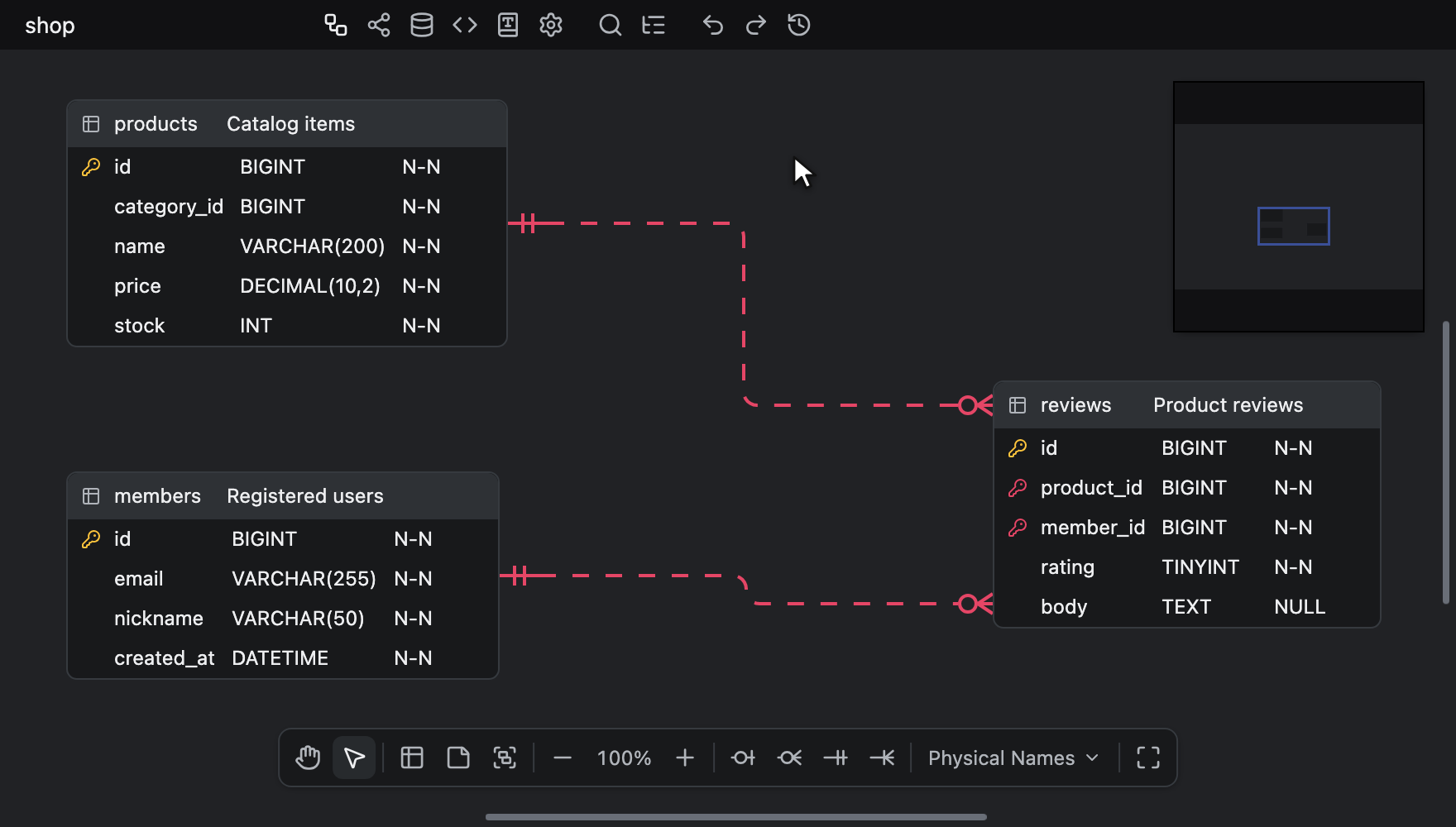

Deletion

Possible to delete via the relationship context menu.

There is no shortcut for it, because a relationship is not selected the way a table or a memo is: Delete and Backspace, which remove what is selected, never remove a relationship on its own — see Table and Memo Deletion.
Relationships are also removed together with what they connect: deleting a table removes every relationship touching it, and deleting a column removes every relationship that uses it.

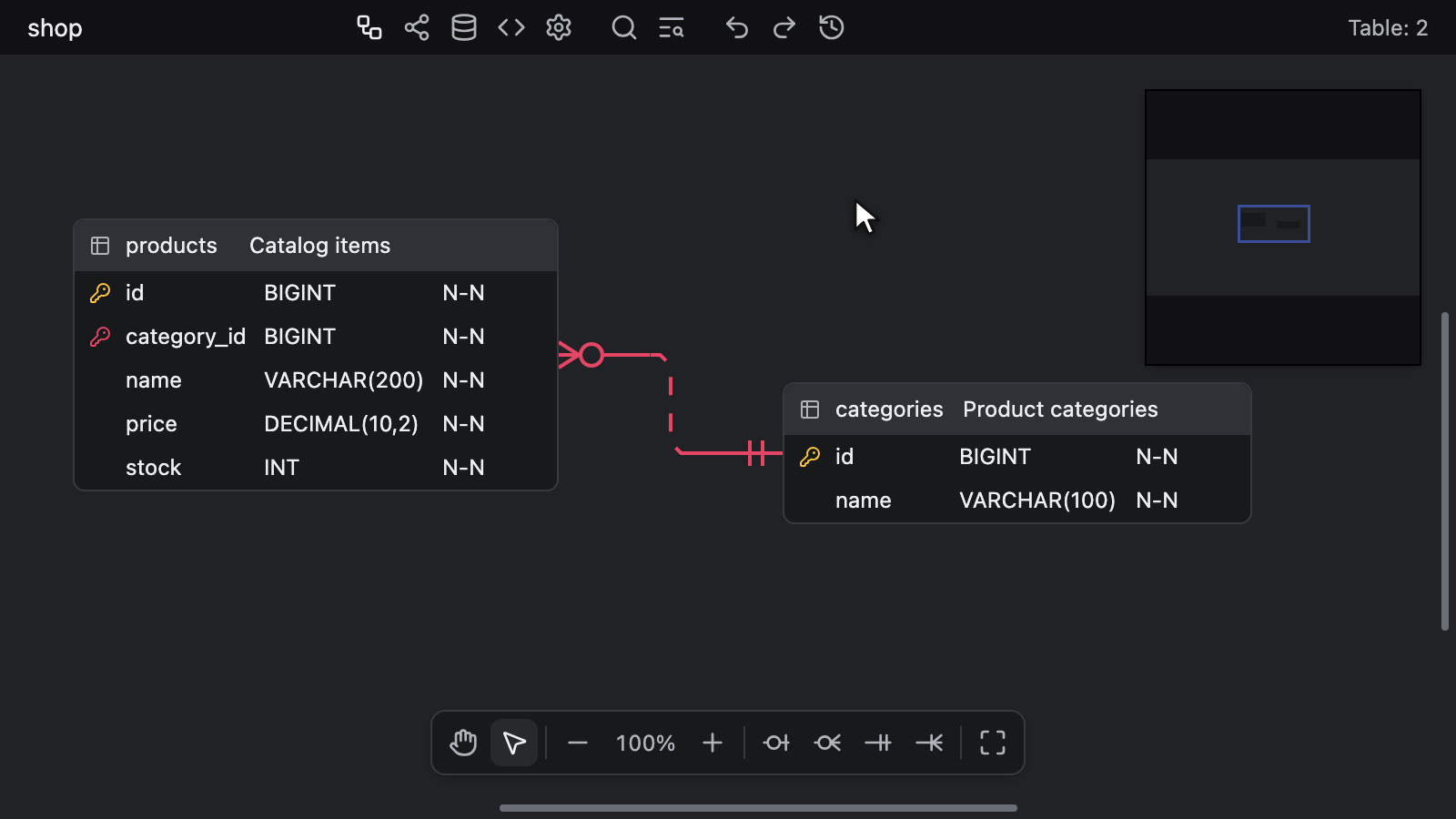

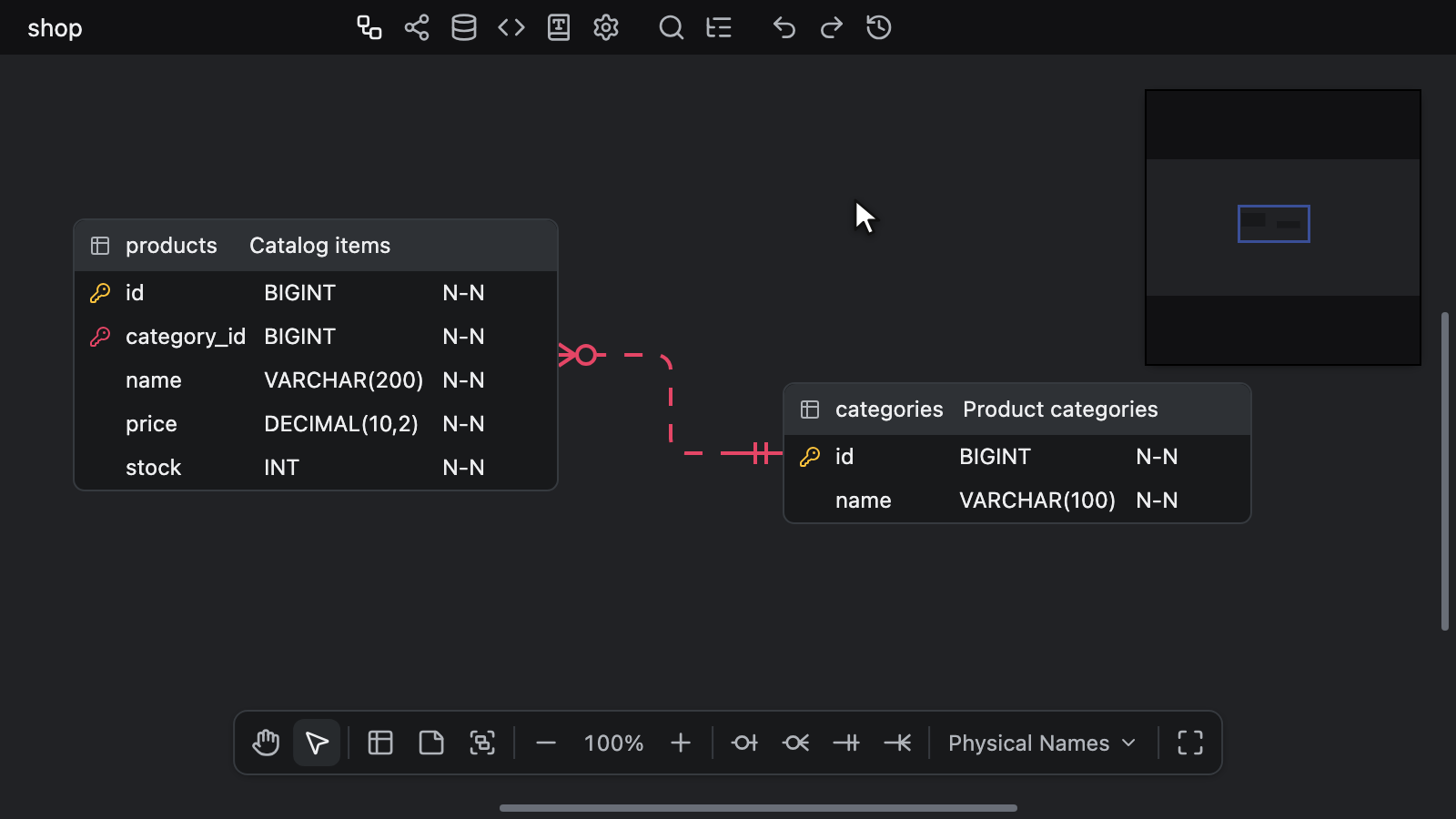

Type Change

Change available through Relationship Type in the relationship context menu.
Four types are offered, and the current one is marked with a check:

• Zero One
• Zero N
• One Only
• One N

These are the same four types you start a relationship with, each with its own shortcut — see Editing Start.

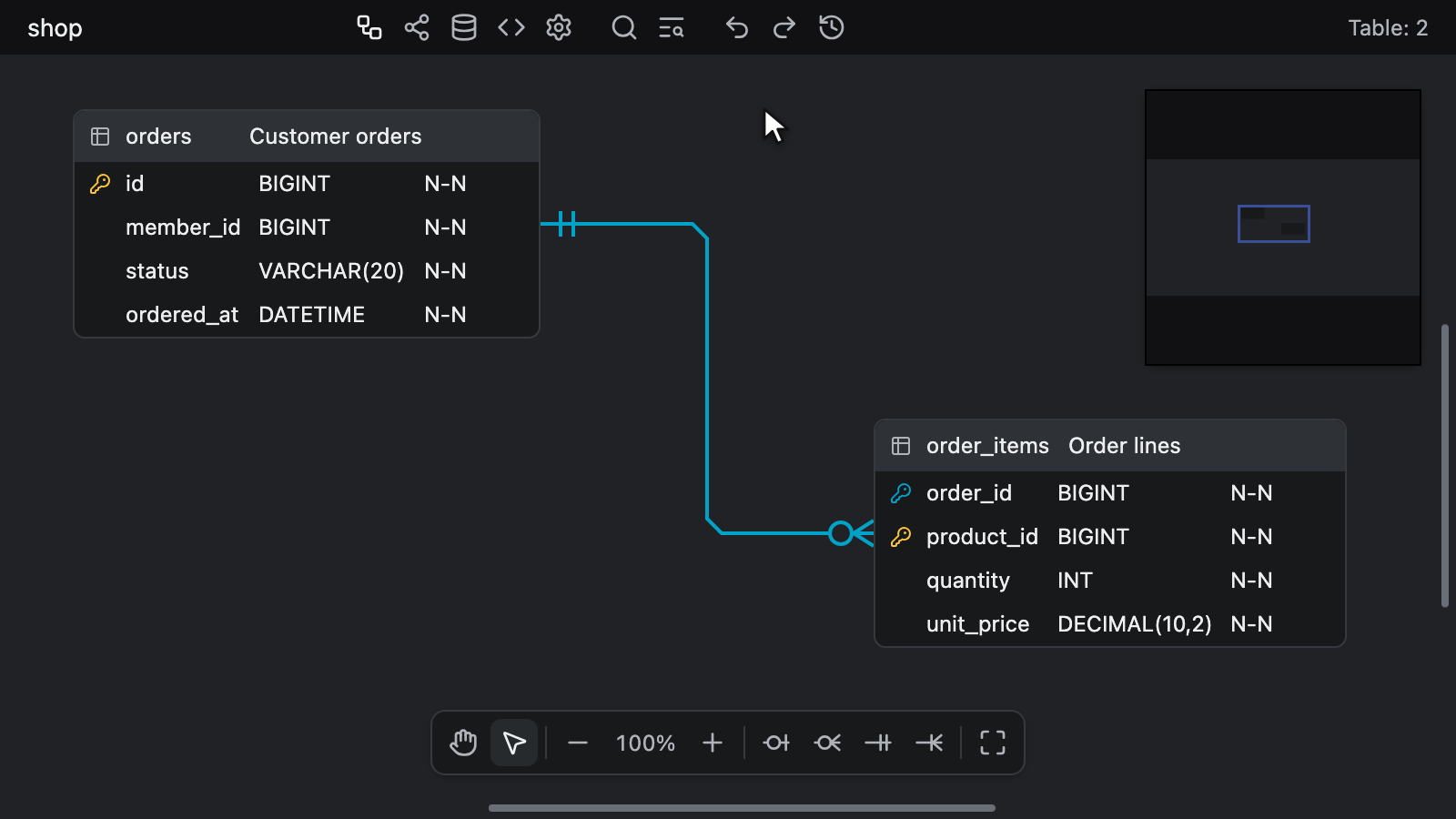

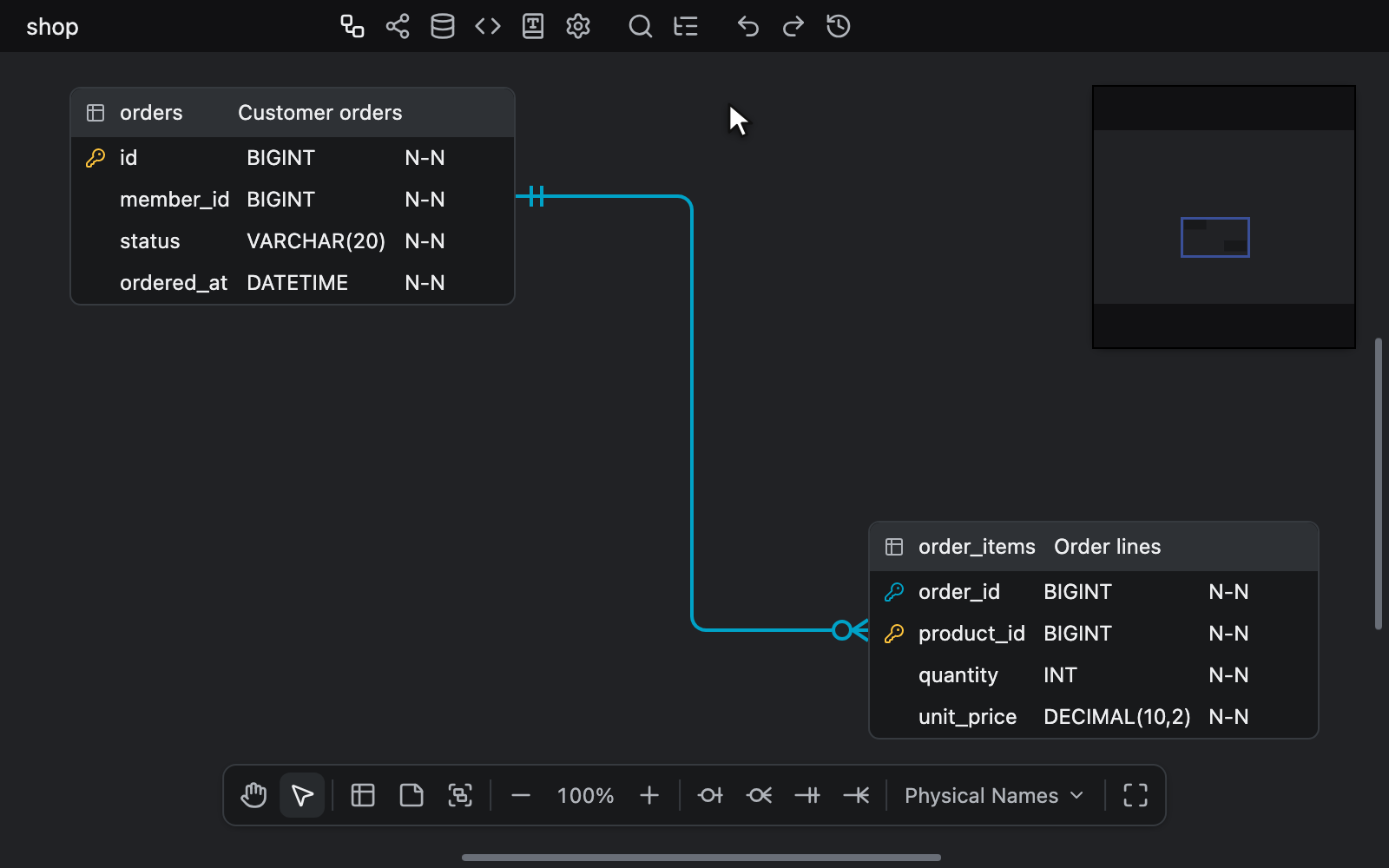

ON DELETE and ON UPDATE

Set through On Delete and On Update in the relationship context menu, between Relationship Type and Map Columns.
Each offers the same six items, and the current one is marked with a check:

• Not set
• NO ACTION
• CASCADE
• SET NULL
• SET DEFAULT
• RESTRICT

Not set writes no clause, so the database's own default applies. A new relationship, drawn or made in Map Columns, starts with both at Not set, and choosing Not set later clears an action.
The two are independent: changing one leaves the other as it is.
The connector shows what is set — see Reading a Connector.
A relationship copied and pasted, or duplicated, along with its tables keeps both actions, and importing Schema SQL, DBML, or AML brings in the actions the file declares — see Importing or Exporting Files.

Every action can be chosen whatever the database is.
An action that the selected database leaves out of its Schema SQL carries a muted note beside it, such as not in MySQL. Not set never carries one, and switching the database updates the notes.
A noted action is still stored on the relationship: the connector shows it, and JSON, DBML, and AML keep it, but that database's Schema SQL leaves the clause out, so the database's default applies.

Schema SQL writes these actions and leaves out the rest:

Database	ON DELETE	ON UPDATE
Databricks	NO ACTION	NO ACTION
MSSQL	NO ACTION, CASCADE, SET NULL, SET DEFAULT	NO ACTION, CASCADE, SET NULL, SET DEFAULT
MariaDB	NO ACTION, CASCADE, SET NULL, RESTRICT	NO ACTION, CASCADE, SET NULL, RESTRICT
MySQL	NO ACTION, CASCADE, SET NULL, RESTRICT	NO ACTION, CASCADE, SET NULL, RESTRICT
Oracle	CASCADE, SET NULL	none
PostgreSQL	all five	all five
Snowflake	NO ACTION	NO ACTION
SQLite	all five	all five

Snowflake's Schema SQL also writes a comment naming each action it leaves out — see Referential Actions.

Which actions the Code Generator's ORM targets write depends on the target as well as the selected database — see Code Generator.

Map Columns

Map Columns pairs the parent table's key with columns of the child table, one row per key column.
Each row either uses a column the child already has or adds a new foreign key column, so a relationship can end on columns that are already in place.

It opens in two ways:

• While drawing a relationship, from Map to existing columns beside the child table — see Relationship Creation. Map then adds a relationship of the type being drawn.
• From Map Columns in the relationship context menu, to change the columns of a relationship that exists. Save then writes the change. A read-only editor leaves this item out.

The dialog's subtitle names the two tables and the relationship type, such as users → posts · One N. The type is shown here but not changed — use Type Change.

Throughout the dialog, the notes and lines under the rows and the toast it closes with included, tables and columns are named as the Name View names them.
Three things stay physical: each data type, which is the column's own and never its domain's name; New column: <name>, which shows the name the new column will get; and the rows Map starts filled, which it pairs by name, never by logical name.

References chooses the key the relationship points at: Primary Key, with its columns in table order, then Unique: <column> for each column marked Unique. It shows only when there is more than one choice.
A unique index does not count as a key here, and a Unique column that is the whole primary key is not listed twice.
Choosing another key rebuilds the rows. A row keeps its pick while that column is still in the child table.

Under the headings Referenced column and Foreign key column, each row shows a column of the key with its data type, and a list of the child's columns to pair it with:

• Pick a column leaves the row empty.
• New column: <name> adds a new foreign key column. The name shown is the one it will get, as described in Foreign Key Column Names, numbered against the child's columns and the other rows that add a new column. It is not offered when the name would be blank, as for a key without a name.
• Every column of the child table, as <name> (<data type>). A column another row has picked reads <name> (<data type>) · in use and cannot be picked, so no two rows share one. A column another relationship already uses can still be picked, so a column such as a shared tenant_id can serve several relationships.

With Map, a row starts filled only when exactly one child column, ignoring case, has the name a new foreign key column for it would get before any _2 numbering, such as users_id for id on users and member_id for member_id. While Bracket is None, the default, the name built from the table part of a schema-qualified table name also counts, so id on public.users is paired with public.users_id or users_id. For a Unique key, the key column's own name counts too, so vin is paired with vin. Every other row starts at Pick a column.
With Save, each row starts on the column the relationship uses now. With either, choosing another key in References fills that key's empty rows by the same names.

When a picked column's data type differs from the one the parent column gives a foreign key, a note under the row says so.
With Relationship DataType Sync on and a data type on the parent column, it reads <column> becomes <type>, the type the mapping will write. Otherwise it reads Types differ: <parent type> and <child type>, and the column keeps its type.

Map or Save stays disabled while something stands in the way, and a line under the rows says what:

• Pick a foreign key column for every referenced column: a row is still empty.
• At least one column must reference a different column: a self-referencing relationship in which every row picks its own parent column.
• These columns are already linked by another relationship: another relationship between the same two tables links exactly these columns.
• <parent> has no key to reference: with Map, the parent has neither a primary key nor a Unique column.

Save also stays disabled until the mapping differs from the relationship's current one.
With Save, a row reads (removed) when its column has left its table. Pick another child column, or, for a parent column that is gone, choose a key in References. With Map, a row whose picked column is removed goes back to Pick a column.

A relationship whose parent columns are not exactly one of the parent's keys opens on an extra choice at the end of References, Current columns (not a key), which keeps those columns as they are. When the parent has no key at all, that is the only choice and References is not shown.
There the line The referenced columns are not a key of <parent>, or <parent> has no key to reference when the parent has no key at all, is a notice, not an error: Save still works, so you can change the child columns and keep the reference.
A relationship whose two column lists cannot be paired, for example because they differ in length, shows (invalid) rows and keeps Save disabled until you choose a key in References, or add a primary key or Unique column to the parent if it has none.

The dialog follows the diagram while it is open, a collaborator's or a coding agent's edits included, and keeps what you picked.
If the relationship's columns or the key it opened on change meanwhile, it adds the line This relationship changed while the dialog was open.

What Map and Save write:

• Map adds the relationship with On Delete and On Update at Not set. Save changes only the relationship's columns, pointing its parent side at the key chosen in References, and keeps its type and its ON DELETE and ON UPDATE.
• A New column row adds a column at the end of the child table, as drawing does: NOT NULL, named after its key, with the key's data type, default, comment, logical name, and domain — see Identifying Relationships.
• A picked column is never renamed or linked to the key's domain, and its Not Null, primary key, Unique, default, comment, and logical name stay as they are. Its data type changes only while Relationship DataType Sync is on and the parent column has a data type: it takes the type the parent column gives a foreign key, the integer type for a serial key as for a new column, and the change carries on along the relationships the way the sync does. Every column the change retypes, picked or reached along the relationships, is unlinked from its domain when its new type differs from the domain's.
• A column the mapping stops using stays in the child table, and is no longer marked as a foreign key unless another relationship still ends on it.
• Everything one Map or Save writes — new columns, type changes, and domain unlinks included — is one undo step.

Whether the relationship is identifying, and how its parent end is drawn, are read off the mapped child columns as for any relationship. Mapping onto the child's primary key columns makes it identifying at once, and mapping onto a column that allows NULL puts a ring at the parent end — see Reading a Connector.
Schema SQL's foreign key references the key you chose, such as REFERENCES vehicle (vin) for a Unique key.

If the diagram already holds the mapping when you press Map or Save, because a collaborator or a coding agent got there first, nothing is written.
If it has changed so that the mapping no longer fits, nothing is written and a toast says Couldn't map columns: the diagram changed.

Cancel, the x button, Escape, or a click on the dimmed area outside the dialog closes it without writing anything.
The dimmed area covers the whole editor, the toolbar included, and an open Explorer stays open under it.
Opening Quick Search closes the dialog too, and so does leaving the ERD tab or the editor turning read-only.
Ctrl + F (Windows/Linux) or ⌘ + F (Mac) closes it as well and puts the caret in the Find field of the Explorer's search, opening the Explorer if it is closed. In an editor too narrow to show the Explorer, it still closes the dialog but shows a toast instead of moving the caret — see Opening and Closing.
If one of its tables or the relationship is removed while it is open, it closes with a toast such as Map Columns closed: the relationship was removed.
While it is open, the canvas shortcuts, undo and redo, and copy and paste do nothing.

A coding agent has no Map Columns tool. It re-maps a relationship by removing it with erd_remove_relationship, which keeps its foreign key columns, and drawing it again on existing columns with erd_link_columns, both in one erd_batch — see Tools.

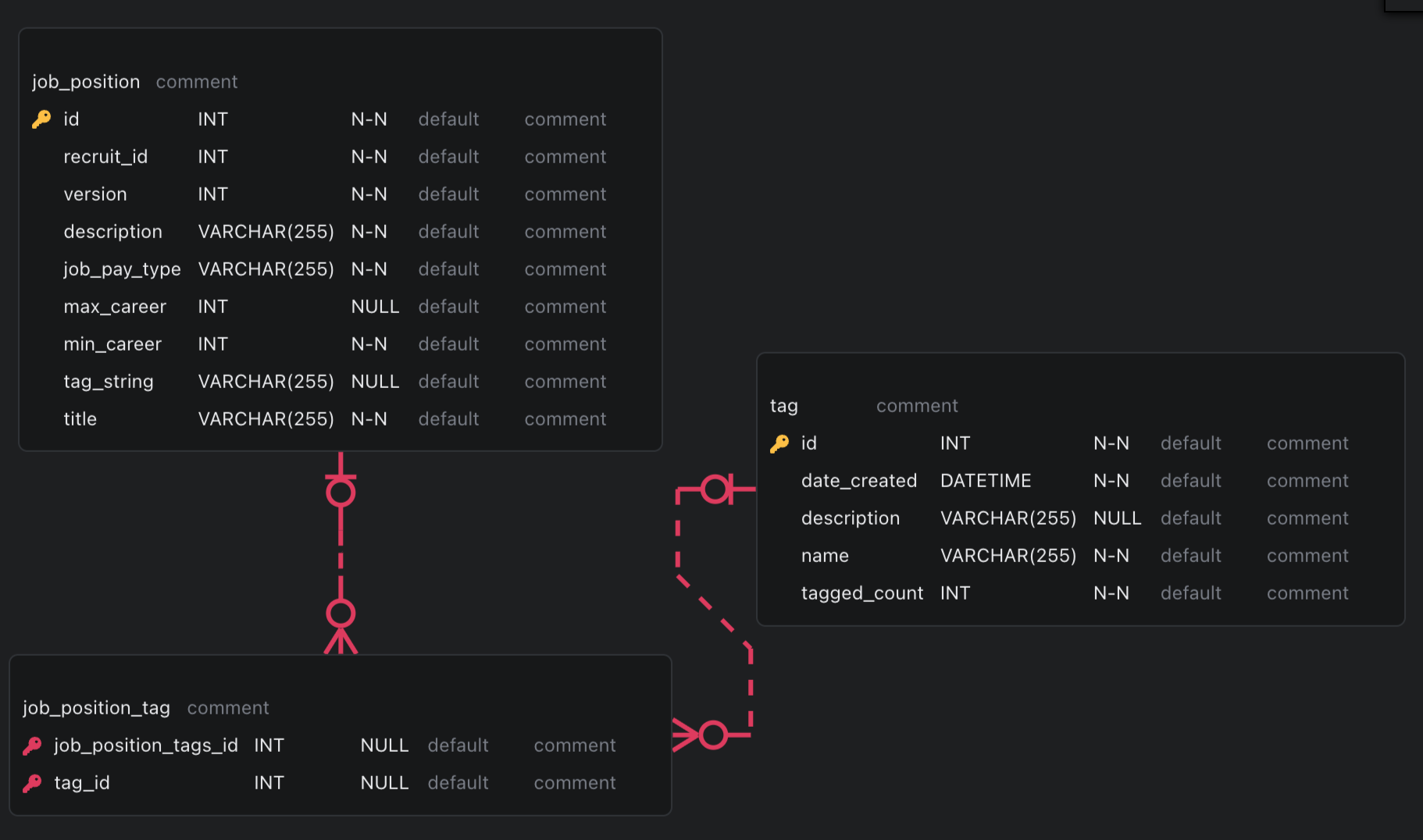

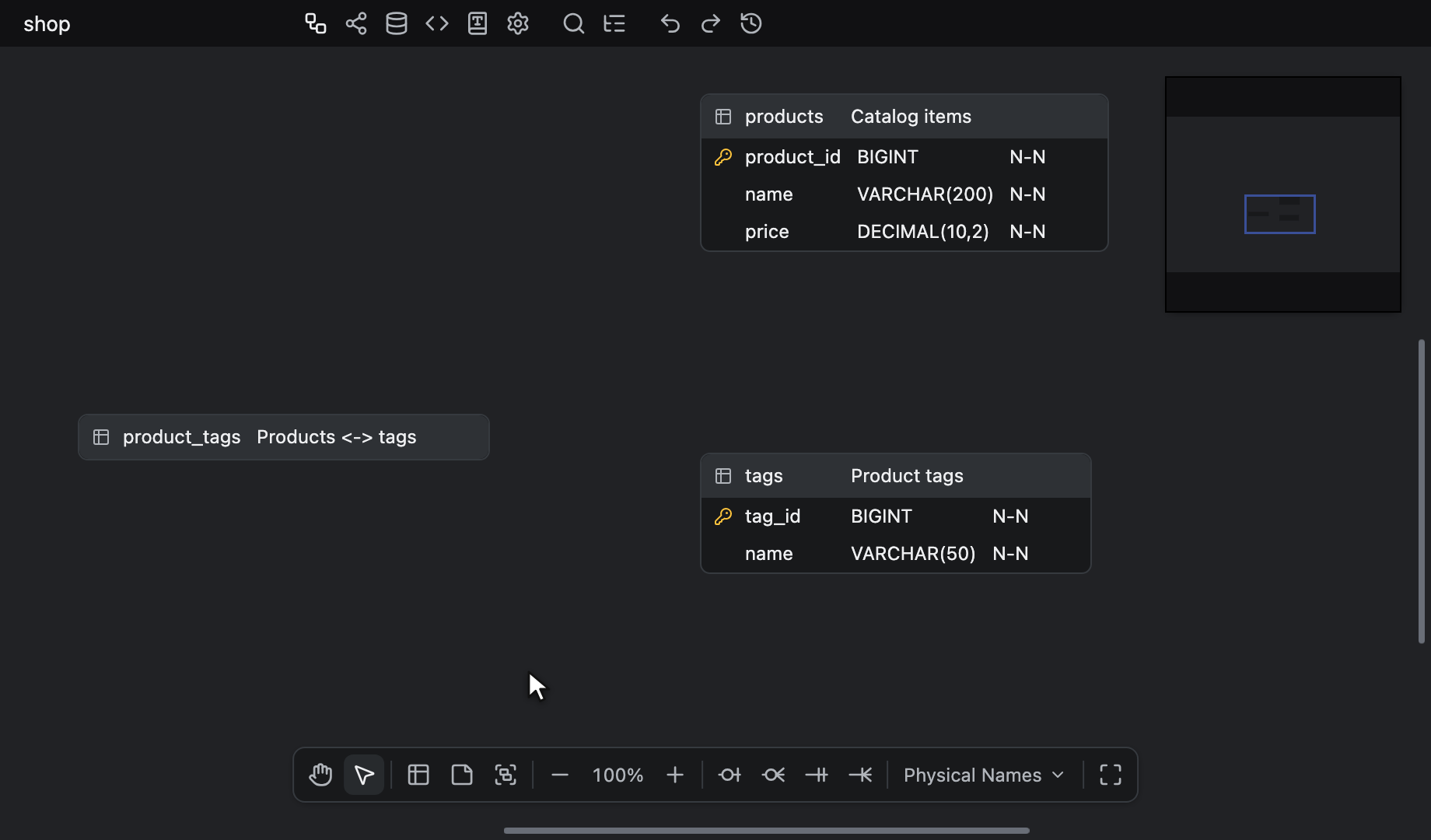

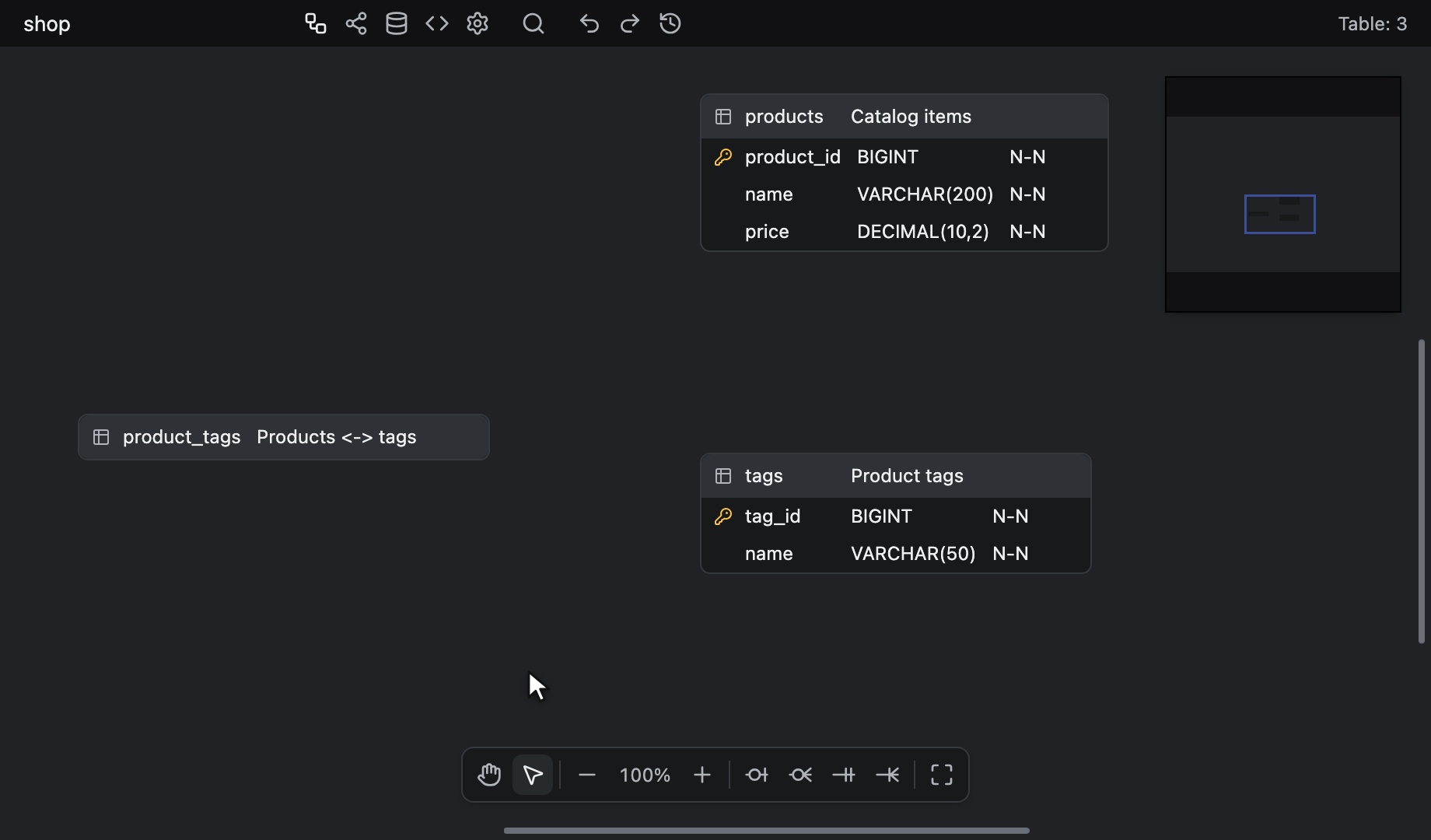

N:M Relationships

Because the editor is based on the physical model, an N:M relationship is expressed with a mapping table, as shown below.

When the mapping table already has its key columns, such as product_id and tag_id on product_tags, draw each relationship with Map to existing columns and pick those columns instead of adding new ones — see Map Columns. If they are the mapping table's primary key, each relationship is identifying at once.

Importing GraphQL, DBML, or AML builds the mapping table for you.
A many-to-many declaration arrives as a table named <left>_<right>, commented Junction table inferred from <left> <-> <right>, joined to both sides by identifying relationships.
See Importing or Exporting Files.

Identifying Relationships

Drawing a relationship by clicking the child table, or with Create new columns, copies each primary key of the parent table onto the child table as a NOT NULL foreign key column, so a new relationship starts out non-identifying.
The copy takes the key's data type, default, comment, and logical name, but not Unique or Auto Increment, and is named as described in Foreign Key Column Names.
A serial key is the exception to the data type: its copy takes the integer type the serial stores. Under any database, smallserial and serial2 give smallint, serial4 gives integer, and bigserial and serial8 give bigint. A bare serial gives integer under PostgreSQL and bigint unsigned under MySQL and MariaDB, and stays serial under any other database.
Only the whole type name counts, ignoring case, so serial(4) is copied as written. A type written in capitals gives capitals: SERIAL gives INTEGER under PostgreSQL. A foreign key column already typed serial in a saved diagram keeps that type.
The copy is also linked to the key's domain, provided the Domains sheet lists that domain when the copy is made and the copy keeps the key's data type. So a serial key's copy that takes an integer type links no domain, while a bare serial kept as serial links it.

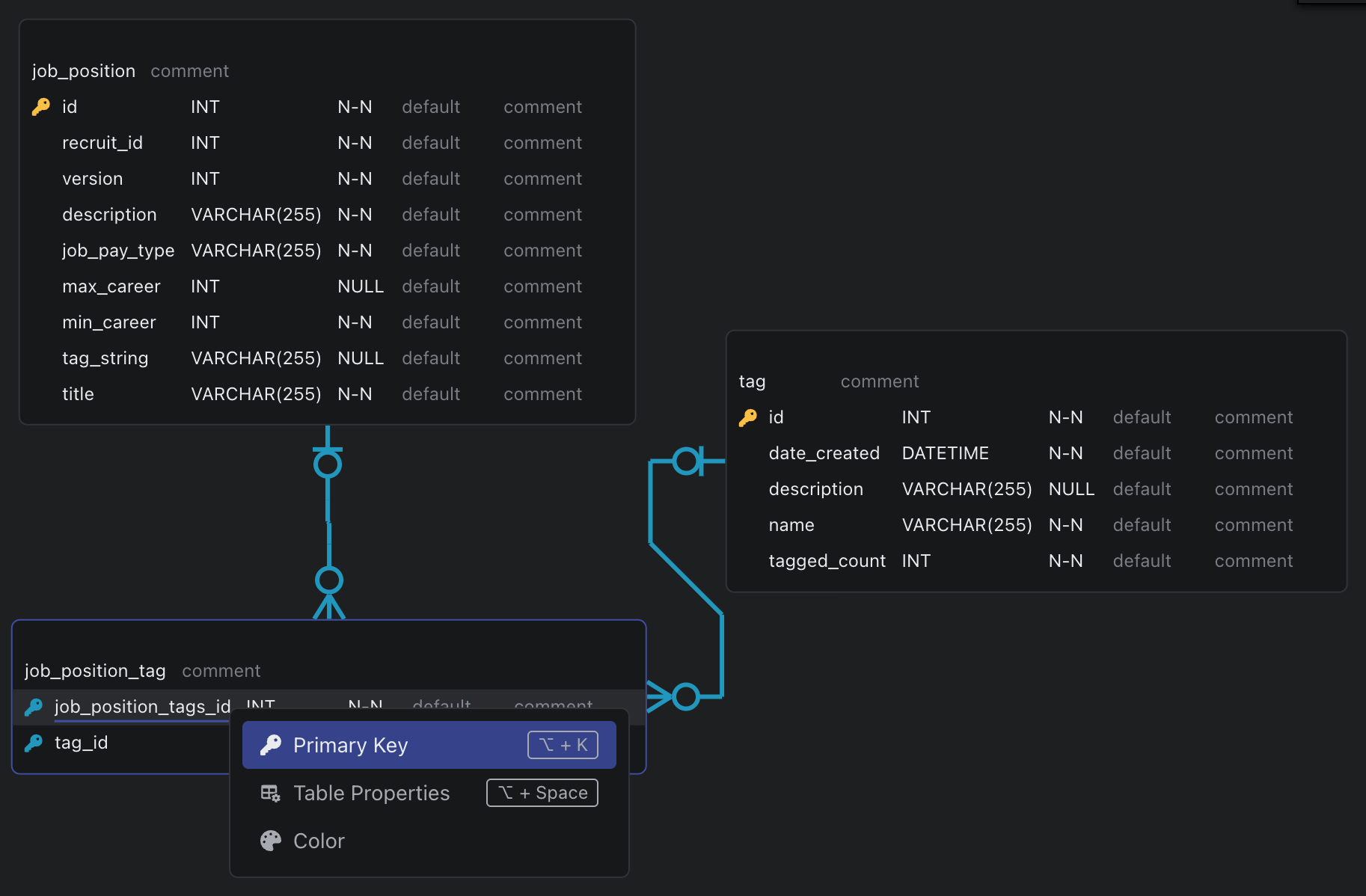

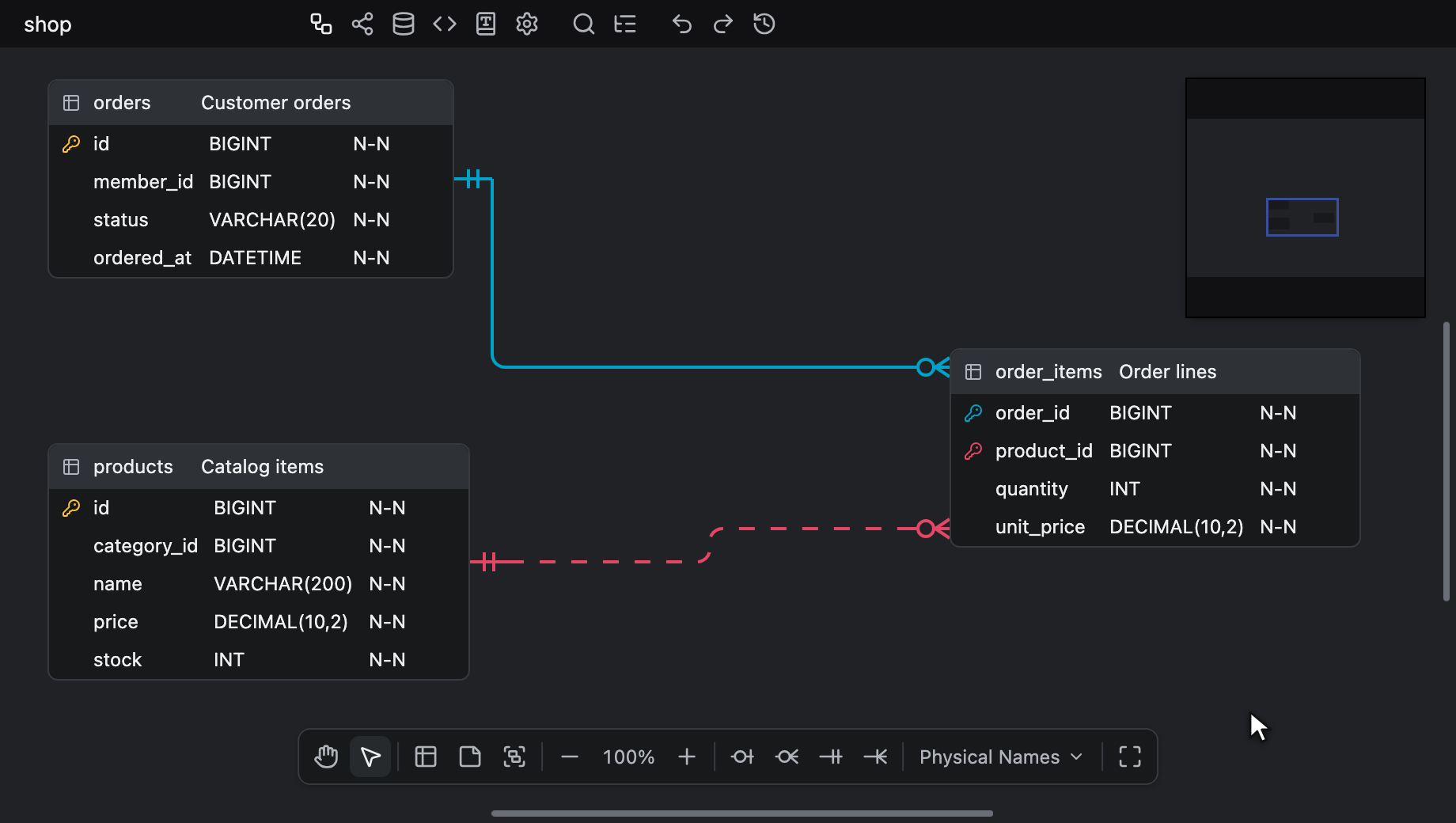

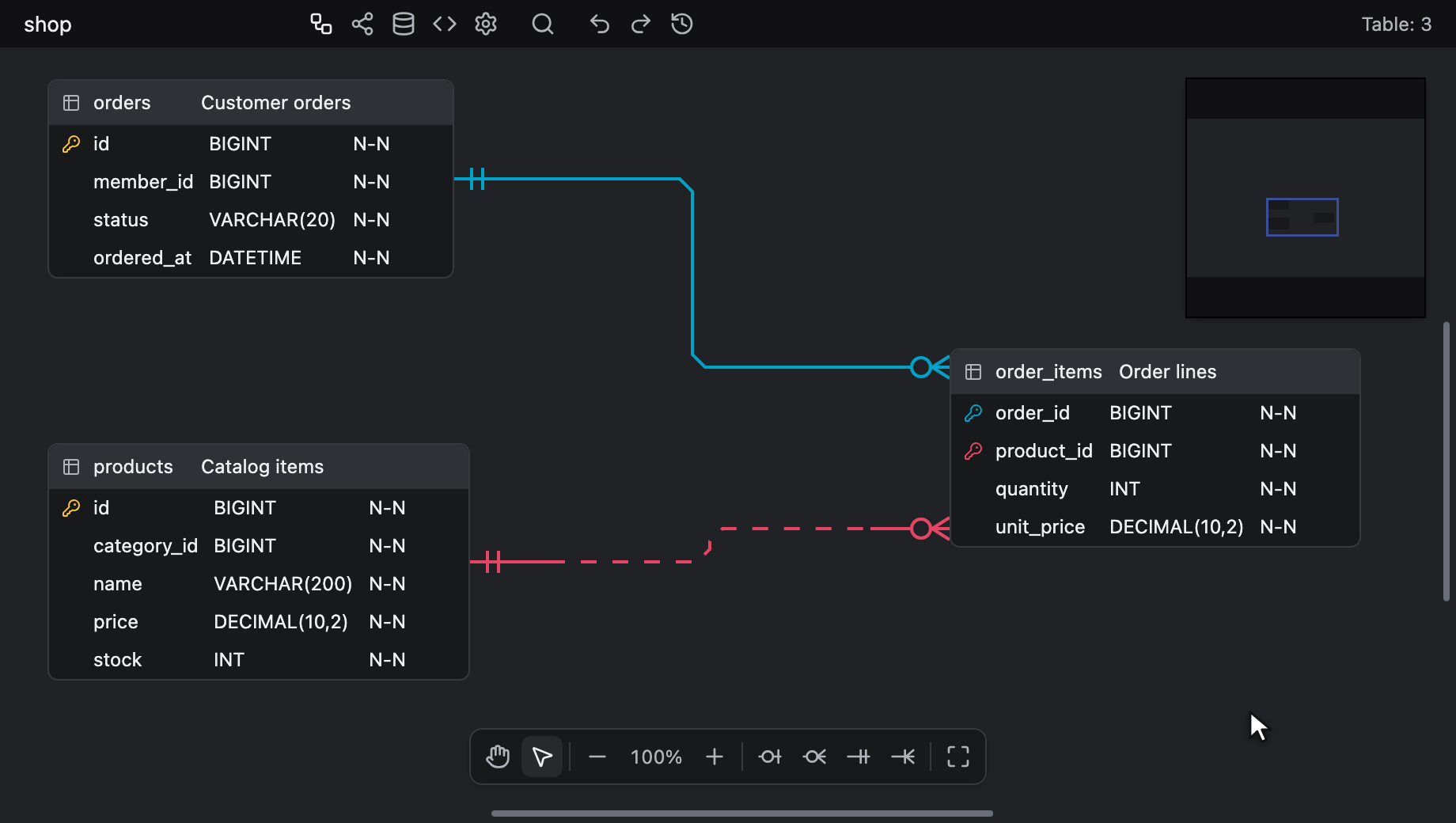

To make the relationship identifying, set those foreign key columns on the child table as primary keys: select them all and press Alt + K (Windows/Linux) or ⌥ + K (Mac) once, or choose Primary Key in the table context menu, which reads Primary Key on selected columns while two or more are selected — see Column Primary Key.

The editor keeps this in step on its own.
A relationship is identifying while every column on its child side is a primary key, and turns non-identifying as soon as one of them is not.

Foreign Key Column Names

Drawing a relationship names each foreign key column it adds after the parent key that column copies:

• A key name of one word, such as id, ID, or uuid, gets the parent table's name and an underscore in front: id on products becomes products_id.
• A key name of several words, such as member_id, userId, or UserID, is kept as it is.
• A one-word key name that is the table's own name, ignoring case, is kept too: currency on currency stays currency. A key that merely contains the table's name still gets the prefix: username on user becomes user_username.

A name is one word when it holds only letters and digits, with no break in case.
Any other character splits it, so _id, order no, and order-no are several words.
So does a break in case, read the way camelCase is: a lowercase letter followed by a capital (userId), two capitals followed by a lowercase letter (IDCard, IDs), or a letter of a script without case, such as Hangul, kana, or Han, next to a letter with case (회원ID).
Digits do not split a word, so id2 and SHA256 are one word. A compound written in one case is one word too: memberid on members becomes members_memberid.

The table name is used as it is written, apart from surrounding spaces: its case, inner spaces, and dots are kept, it is not made singular, and the Code Generator's Table Name Case and Column Name Case play no part. Users with the key ID gives Users_ID.
Each column of a composite key is named on its own: orders with the key (tenant_id, id) adds tenant_id and orders_id.

A name the child table already has, ignoring case, is numbered with _2, _3, and so on, taking the first number that is free.
A second relationship from users, keyed by id, into the same table adds users_id_2, and a self-reference on members, keyed by member_id, adds member_id_2.
The columns of one composite key are numbered against each other the same way, and a name kept as it is claims its place first: user with the key (id, user_id) adds user_id for user_id and user_id_2 for id.

A parent table without a name leaves the key name as it is, numbered like any other on a clash.
A key without a name gives a foreign key column without a name.
That includes the primary key the editor adds to a parent that has none, unless you name it before clicking the child table.

The names are set when the relationship is drawn. Renaming the parent table or its key later does not rename them.
The New column rows of Map Columns are named by the same rules, and the list shows each name before you choose it.
Relationships that arrive with their columns already in place — from an import, a paste, a duplicate, or Map Columns pairing existing columns — keep the names those columns have.
A coding agent adding a relationship with erd_add_relationship gets the same names, data types, logical names, and domains — see Tools.

A foreign key column is named after its key, never after the logical name it copies, and its name counts as one you wrote: a logical name written on the column later leaves the name as it is, unless the name is empty — see Names of Your Own.
While the copied logical name matches a term that gives another name, the Checks sheet therefore lists the column under Physical name mismatch. Deriving its physical name again renames it from the dictionaries, unless another column of the child table already holds the name they give, ignoring case — see Derive Physical Names Again.

Reading a Connector

• An identifying relationship is drawn as a solid line, a non-identifying one as a dashed line.
• The child end carries the cardinality symbol of the relationship type: a ring and a bar for Zero One, a ring and a crow's foot for Zero N, two bars for One Only, and a bar and a crow's foot for One N.
• The parent end is a ring and a bar, like Zero One, when any of the foreign key columns allows NULL, and two bars, like One Only, when they are all NOT NULL.

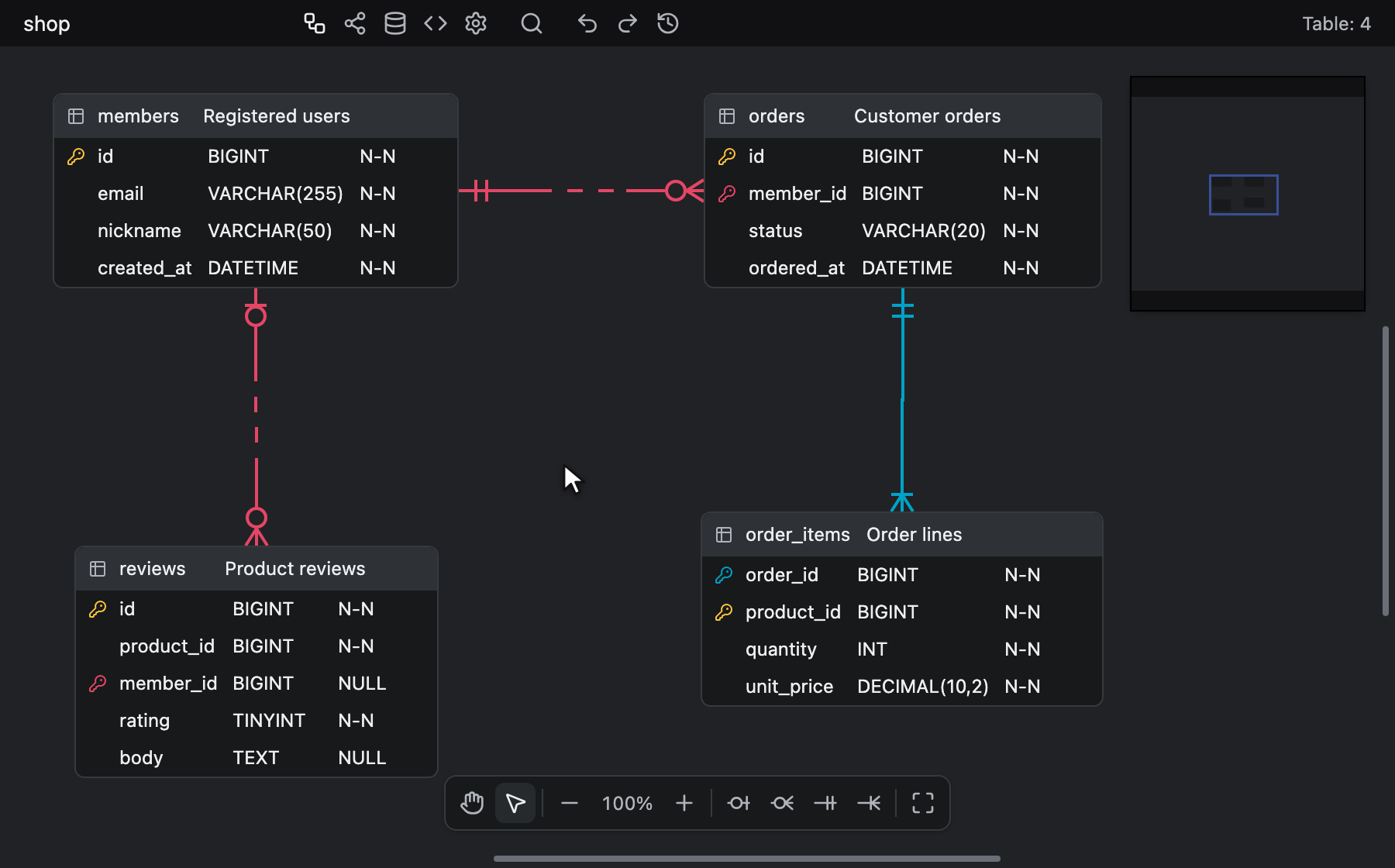

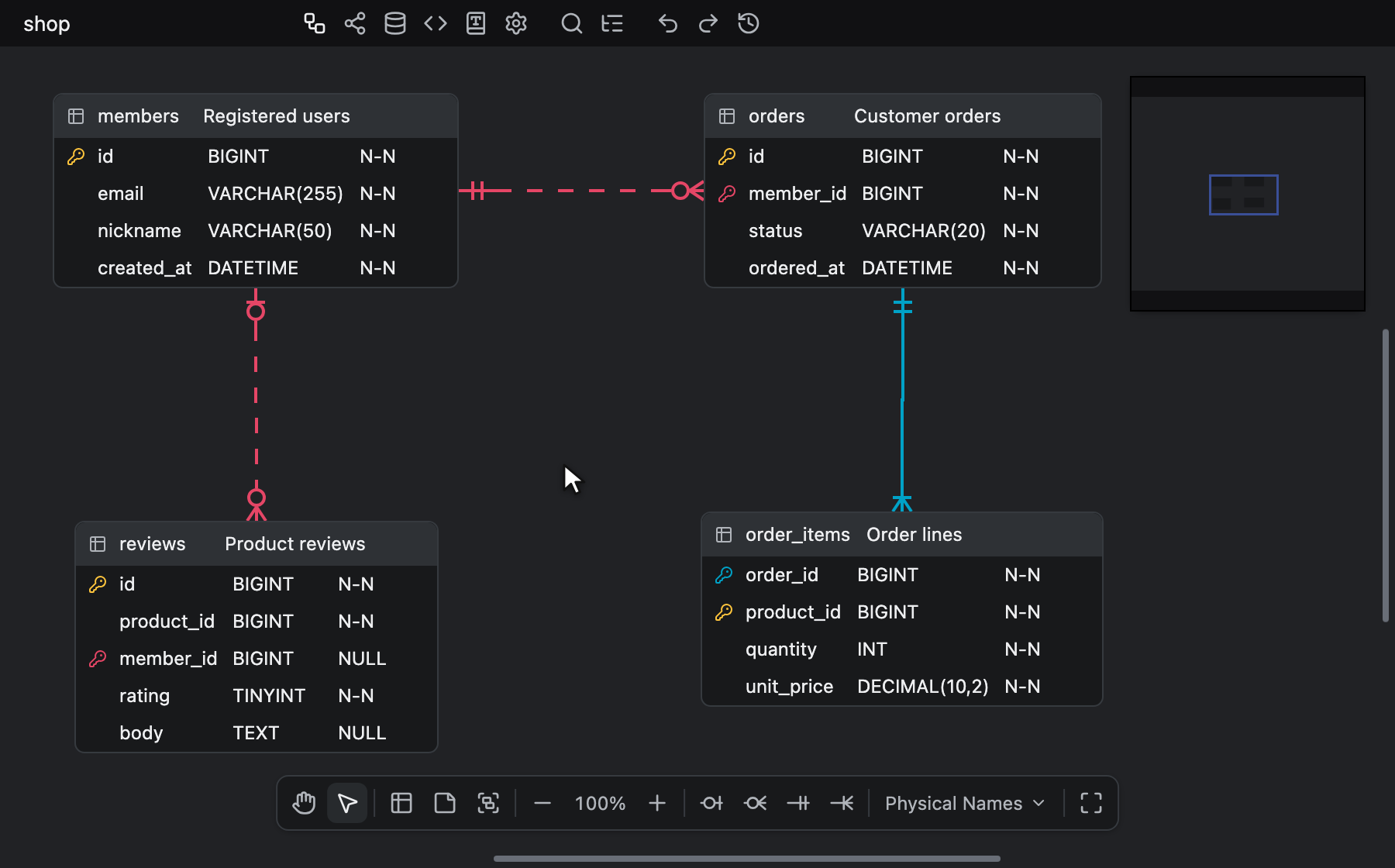

• Hovering a connector highlights it along with the columns it links in both tables.

A relationship that sets ON DELETE or ON UPDATE carries a label beside its child end, such as D:C U:R: D: and the ON DELETE action, then U: and the ON UPDATE action, each only when it is set.
The actions are abbreviated after erwin's notation: C for CASCADE, R for RESTRICT, SN for SET NULL, SD for SET DEFAULT, and NA for NO ACTION. A relationship that sets neither has no label.
The label sits on the side away from the child table, above the line when the connector leaves that table's left or right side and to its right when it leaves the top or bottom, clear of the cardinality symbol.
It is drawn in the connector's color on a small box of the canvas background, and lights up together with its connector. Labels are drawn on top of every connector, so a line crossing one runs underneath it.
It shows the action stored on the relationship whatever the selected database writes, so ON DELETE SET DEFAULT still reads D:SD on MySQL.

Hovering a connector that sets either action also shows a tooltip spelling the clauses out, one per line, such as ON DELETE CASCADE and ON UPDATE RESTRICT.
The tooltip appears even while the label is hidden.

Going to a relationship lights it: choosing a row under a table's Foreign Keys folder in the Explorer, or a foreign key row in the Diff Viewer, draws its connector and its label in the hover color. In the Diff Viewer it lights the connector on each side that holds the relationship, so an added foreign key lights the current side only and a removed one the saved side only.
The jump selects the child table alone with its foreign key columns, the focused cell on the first of them; the relationship itself is still never selected. For where the view goes, see Where a Jump Lands.
The light goes out at the next left or right press on the canvas, whether on an empty spot, a table, a memo, a table group, or a connector, even a press that leaves the selection as it was. Going to another row or search match in the Explorer puts it out too, and so does going to another row in the Diff Viewer, on each side that row goes to.
Panning with the middle button or the hand tool leaves it lit, and so do folding or unfolding a row in the Explorer or the Diff Viewer, clearing the selection with Escape, and a jump from Quick Search or Flow's external-link card button.
The light is not saved and is not in the undo history, and collaborators do not see it.

Hide connectors on the ERD canvas with the Relationship view option, or only their labels with the Referential Actions view option, which is on by default — see Table View Options.
Labels are not drawn at 70% and below, where tables collapse to their name.
An image export is always drawn at 100%, so it draws the labels whatever the canvas zoom, unless a view option hides them. With Background off, the box behind each label is transparent too.
Flow mode on the Visualization tab draws connectors even with Relationship off, each as one smooth solid gray curve with the same end marks, so the dashed line, the labels, the tooltip, the light after a jump, and the orthogonal routing described on this page apply to the ERD canvas only. A relationship from a table to itself curves round the top-right corner in Flow too — see Connector Routing.

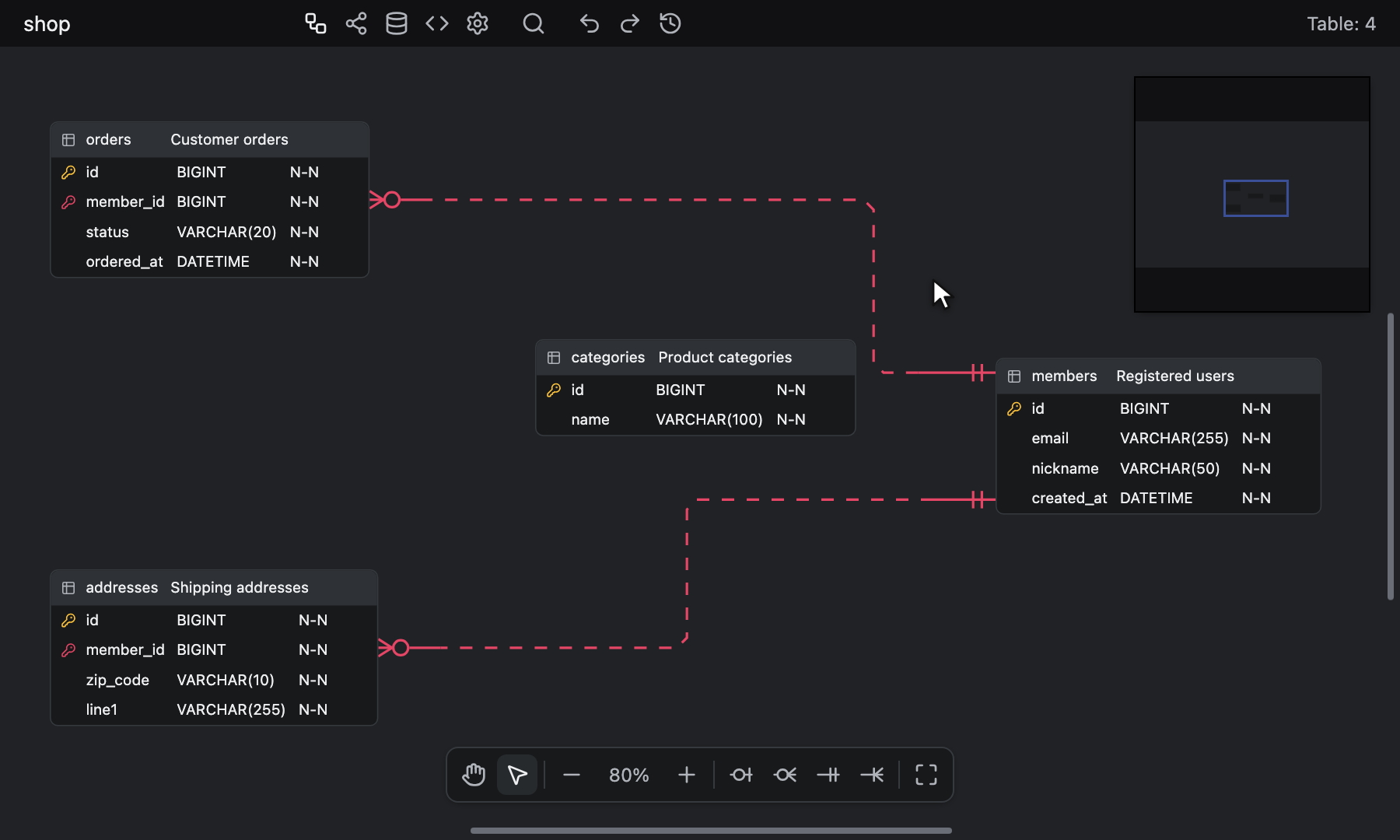

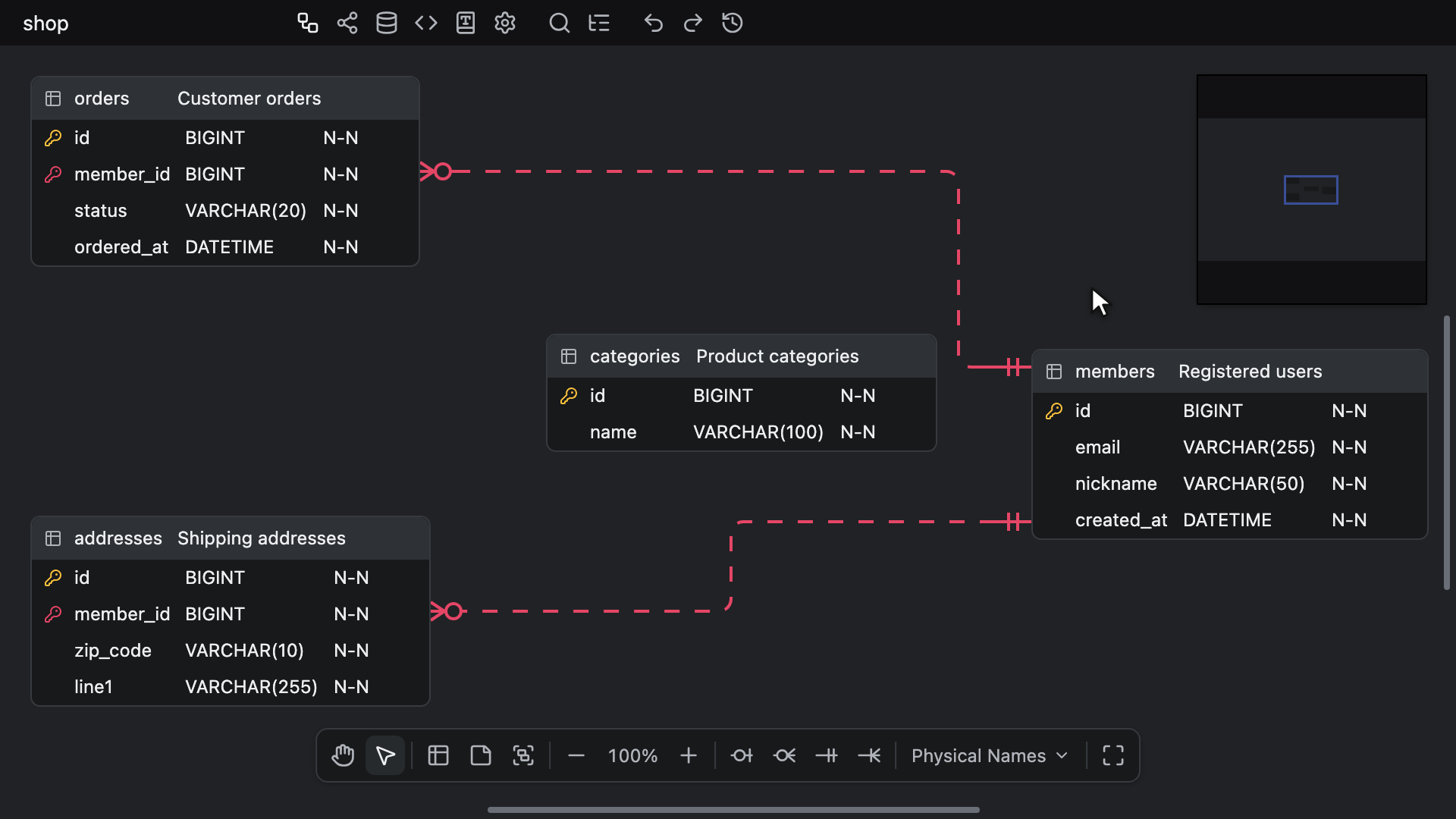

Connector Routing

Connectors are routed orthogonally.
A route bends around the tables that sit between its two ends instead of crossing them, and its corners are rounded.
Each end leaves its table in a short straight run before it turns, so two tables a short way apart whose connector ends line up are joined by one straight line rather than a detour.
Routes leaving the same side of a table are spread onto separate corridors so they do not run down one another.
Only tables are avoided: a connector may cross a memo or a table group's box, and is drawn above table groups and below tables and memos.

A relationship from a table to itself is drawn as one curve round the table's top-right corner, leaving the top side at the parent end and entering the right side at the child end.
Further self-references on the same table nest outside the first, so their curves do not cross one another or the table.

There is nothing to configure.
Routes are recalculated automatically whenever anything on the canvas moves or resizes, so they never need touching by hand.
